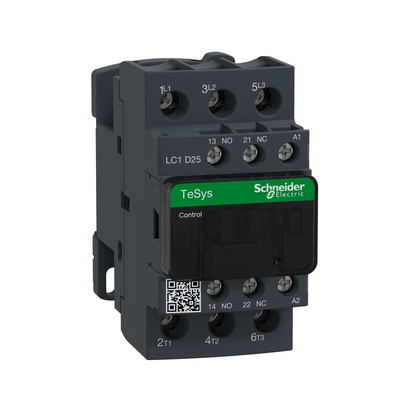

LC1D25FE7, Schneider Electric LC1D Series Contactor, 115 V ac Coil, 3-Pole, 25 A, 11 kW, 3NO, 690 V ac, Контактор

Schneider Electric LC1D TeSys D Contactors

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

• AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.


• AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

Schneider Electric Contactor, 370g Weight, 15 Million Cycle Mechanical Lifespan - TeSys D Series - LC1D25FE7

Extend your industrial motor's lifespan with this contactor from Schneider Electric. It switches the power supply to your motor circuits on and off to reduce the risk of electrical arcing and boost performance. The unit comes with overvoltage protection to safeguard against potentially damaging surges. A pair of auxiliary contact blocks give backup support when you need it. For safe handling, the unit's IP20 rating means it's touchproof and protected against objects larger than 12mm. Installation is a breeze thanks to screw terminals.

Features & Benefits

• 25A current rating and 690V AC voltage rating, so it stands up to high-current installations
• Power rating of 11kW makes it an efficient choice for industrial-grade applications
• Efficient 3-pole design protects multiple circuits at once
• Bidirectional peak limiting diode suppressor ensures the coil stays protected

Applications

• Transportation industry
• Process controls
• Automated assembly lines

What temperature range can I use this contactor in?

The unit performs reliably in challenging conditions, as it has an operating temperature range between -40°C and +60°C.

How fast is this contactor?

The unit switches circuits on and off at rapid speeds, achieving up to 3,600 cycles per hour at the maximum rated temperature.

TeSys-to-Everlink-cross-references

Datasheet LC1D25FE7

LC1D Catalogue

Green Premium Ecolabel

Product Change Notice (PCN)

Product Environmental Profile

Instruction Sheet - LC1D Series
