LC1D32M7, Schneider Electric LC1D Series Contactor, 220 V ac Coil, 3-Pole, 32 A, 15 kW, 3NO, 690 V ac, Контактор

Schneider Electric LC1D TeSys D Contactors

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

• AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.


• AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

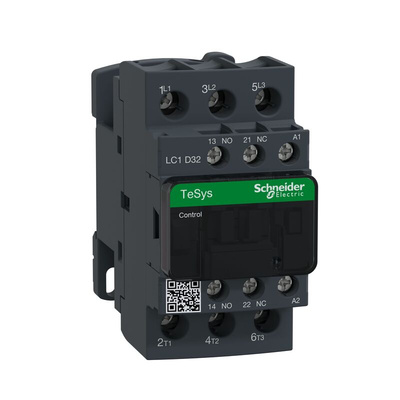

Schneider Electric LC1D Series Contactor, 3NO Configuration, 3 Pole - LC1D32M7

This Schneider Electric TeSys D contactor is a reliable and efficient solution for various applications in the automation, electronics, Electrical, and mechanical industries. With a power rating of 15kW and a coil voltage of 220V, this contactor ensures optimal performance and safety in controlling motor loads and resistive loads. The green premium certification highlights its eco-friendly design, making it a sustainable choice for environmentally conscious users.

Features & Benefits

• 3 pole contactor for versatile applications
• Screw terminal type for easy and secure connections
• Wide operating temperature range from 5°C to +60°C
• AC 3 utilisation category for efficient power circuit operation
• Compact design with dimensions of 85mm x 45mm x 90mm
• High contacts voltage rating of 690V AC for enhanced safety

Applications

• Ideal for motor control in industrial machinery
• Suitable for use in HVAC systems for reliable operation
• Perfect for lighting control applications in commercial buildings
• Can be used in pumps, fans, and compressors for efficient operation

Can it handle high power ratings?

The Schneider Electric contactor is designed to handle power ratings up to 15kW, making it suitable for a wide range of applications.

Will it ensure safe and reliable operation?

Yes, the contactor features a high contact voltage rating of 690V AC and is designed to provide safe and reliable performance in various environments.

Can it be used in harsh operating conditions?

The contactor is built to withstand temperatures ranging from -5°C to +60°C, making it suitable for use in a variety of harsh operating conditions.
