LC1DT20BD, Schneider Electric LC1D Series Contactor, 24 V dc Coil, 4-Pole, 20 A, 4NO, 690 V ac, Контактор

Schneider Electric LC1D TeSys D Contactors

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

• AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.


• AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

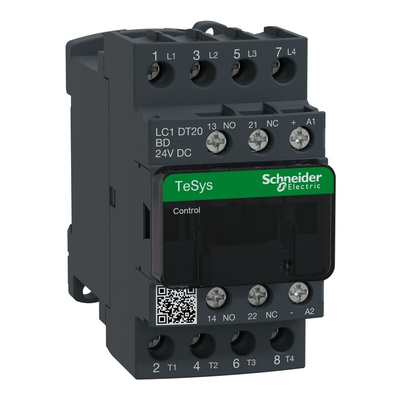

Schneider Electric Contactor, DIN Rail Mounting, 1.56W Maximum Power Loss Per Pole - TeSys D Series - LC1DT20BD

Keen to kickstart your industrial equipment? Get your processes going with this Schneider Electric contactor. By activating circuits at a speed between 53.55 and 72.45ms, it boots up your machinery in a snap. Put it to the test with up to four devices at once, as the product's four poles make it a handy hook-up point. Mounting this component is achievable in no time even without your toolkit, thanks to its simple DIN rail installation. As it handles current loads up to 20A, this is a safe choice for controlling low-current appliances.

Features & Benefits

• Integrated auxiliary contacts signal control devices when switching, for remote monitoring
• Protective cover guards the front plate against impacts to keep sensitive parts going strong
• Compact dimensions of 45 (W) x 85 (H) x 99mm (D) to pack tightly onto a busy rail
• Mechanical lifespan of 30 million operations, so it gives long-term switching performance

Applications

• HVAC systems
• Electrical generators
• Food production

How many times can this product switch in an hour?

This contactor completes up to 3600 switching cycles per hour, meaning it won't buckle under intense demand.

Approvals

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.
