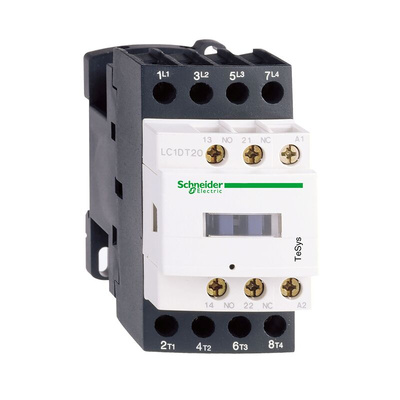

LC1DT25BD, Schneider Electric LC1D Series Contactor, 24 V dc Coil, 4-Pole, 25 A, 4NO, 690 V ac, Контактор

Schneider Electric Contactor, 230V AC Control Circuit Voltage, 50/60Hz Coil - TeSys Series - LC1DT25BD

Trust this contactor from Schneider Electric to turn electricals off and on in a snap. Thanks to its 4NO configuration, it only powers up devices when you say so, giving you accurate control over your setup. With a rated operational current of up to 25A, this powerhouse packs the punch needed to manage heavy-duty air conditioning units or electric water heaters like a champ. Thanks to an 800,000-cycle electrical lifespan, you can trust it to keep your system up and running for the long haul.

Features & Benefits

• IP20-rating indicates the unit's touch-proof for safe handling and maintenance
• Broad operating temperatures between -40°C and +60°C suit demanding environments
• Multi-standard screws make it a cinch to install

Applications

• Industrial cooling systems
• Commercial lighting
• Manufacturing facilities

What auxiliary contactors can I attach to this unit?

It's a cinch to boost power to your equipment by mounting up to two auxiliary contactors to the front of this device. You can attach the LADN22 (394-9908), LADN11 (394-9936) or LADN20 axillary blocks (394-9914) in a jiffy. You can also add a time delay block (394-9835) to increase the lag between one and 30 seconds.

Approvals

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

Datasheet LC1DT25BD

Product Change Notice (PCN)

Green Premium - Product Environmental Profile

Instruction Sheet - LC1 / LC2 D115 D150

Product Environmental Profile
