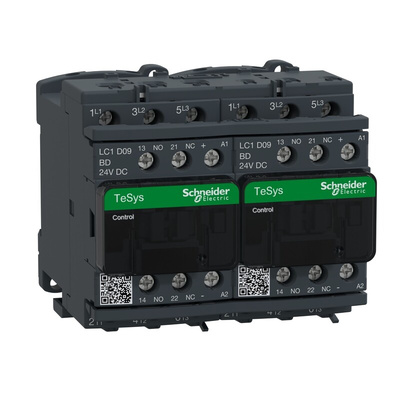

LC2D09BD, Schneider Electric LC2D Series Contactor, 24 V dc Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac, Контактор

Schneider Electric LC2D TeSys D Reversing Contactors

TeSys D reversing Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The LC2D series is preassembled with reversing power busbar and has been designed for motor control or resistive load applications. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Pre-installed interlock
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.
Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What is a reversing contactor?

A reversing contactor is an assembly of two of standard contactors, with a mechanical and electrical interlock connecting them. The interlocks allow only one contactor to be closed (giving power supply to the motor) at any time.

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

Approvals

EN 60947, VDE 0660

Schneider Electric Contactor, For DC Circuit Control, End-Of-Life Optimised - TeSyS D Series - LC2D09BD

Looking for reliable bidirectional motor control? Try this contactor from Schneider Electric. As it's a reversing type, you can conveniently use it to switch power to a motor moving in either direction. Its fast-acting contacts open and close in less than a second, so you can count on it's speedy reaction time. This helps to minimise the risk of arcing and damage to connected devices. A built-in bidirectional peak limiting diode suppressor quickly blocks the path of short circuits. Screw clamp terminals allow for fuss-free wiring using only a screwdriver and achieve connections that withstand shock and vibration. This means you can put the contactor to the test in demanding industrial settings.

Features & Benefits

• Flame-retardant, so burns for a maximum of 30 seconds if it catches alight
• Supplied with a protective cover to minimise the risk of environmental damage
• Mechanical durability of 30 million cycles for reliability throughout its extended lifespan

Applications

• Pharmaceutical manufacturing
• Industrial automation
• Warehouses and packaging facilities
• Aerospace technology

Can I mount this contactor on a panel?

Yes, for convenience you can choose to mount this device on a panel or a DIN rail.

Datasheet

Product Change Notice (PCN)

Product Environmental Profile

Instruction Sheet - LC2D09BD
