LC2D09F7, Schneider Electric LC2D Series Contactor, 110 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac, Контактор

Schneider Electric LC2D TeSys D Reversing Contactors

TeSys D reversing Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The LC2D series is preassembled with reversing power busbar and has been designed for motor control or resistive load applications. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Pre-installed interlock
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.
Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What is a reversing contactor?

A reversing contactor is an assembly of two of standard contactors, with a mechanical and electrical interlock connecting them. The interlocks allow only one contactor to be closed (giving power supply to the motor) at any time.

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

Approvals

EN 60947, VDE 0660

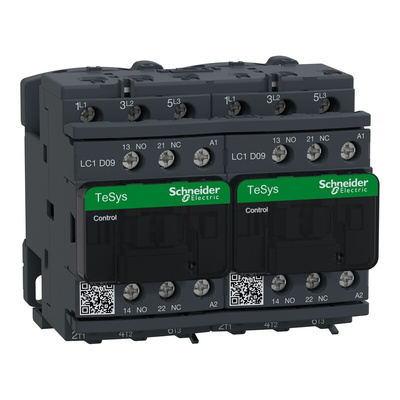

Schneider Electric Contactor, Reversing Operation, 3 Poles - TeSys D Series - LC2D09F7

Give your motor control a boost with this contactor from Schneider Electric. It has a reversing function that drives the rotation of your motor backwards, giving you precision control of your machine operations. The device's built-in mechanical interlock stops the motor from driving forwards and backwards simultaneously, so there's no need to worry about short circuits. Built-in auxiliary contacts send signals to connected hardware when the product switches, getting your linked machinery in line for optimal efficiency.

Features & Benefits

• Screw clamp terminals hold wiring securely in place
• Long mechanical lifespan of 15 million operations for long-lasting performance
• Opening time of 4 to 19ms and closing time of 12 to 22ms for rapid switching
• Broad operating temperature range of -40°C to +60°C for use in demanding environments
• Compact dimensions of 77 (H) x 90 (W) x 86mm (D) to add minimal bulk to your equipment

Applications

• Process control
• Food production
• Battery manufacturing

How do I mount this contactor into my system?

This device is compatible with both rail and plate mounting, making it a snap to incorporate into your setup.

Datasheet

Product Change Notice (PCN)

Green Premium - Product Environmental Profile

Product Environmental Profile

Instruction Sheet - LC2D09F7
