XVLA234, Schneider Electric, XVL, Panel Mount Red Pilot Light, 8mm Cutout, IP40, IP65, Round, Индикатор

XVL A series lamps

Range of Led indicators Ø 8 and 12 mm.
Version with plastic bezel and integrated cover.
IP 40 / IP 65 with XVL seal
For Ø 8 pilot lights, the "+ "corresponds to the longer tag

Standards

IEC 947-1, IEC 947-5-1, IEC 947-5-4, EN 60947-5-1, etc.

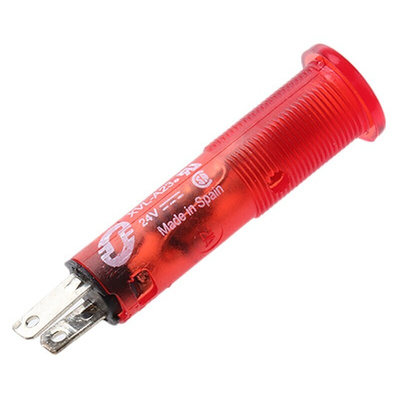

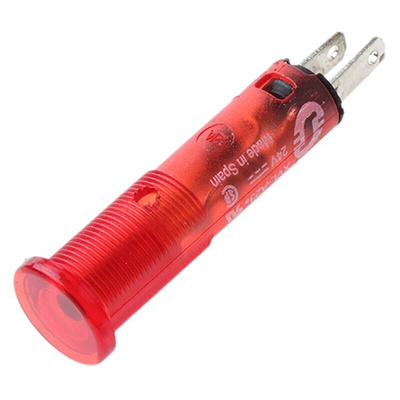

Schneider Electric Pilot Light, 18mA Current Rating, 8mm Mounting Diameter - Harmony XVL Series - XVLA234

Need to know when machinery starts or stops? Grab this panel mount indicator pilot light from Schneider Electric to stay in the loop with your system's operations. With the unit's 8mm mounting diameter, it's a sure fit in small areas. Thanks to the soldering tag, installation's a breeze – just insert and solder the component in place for a secure panel connection. An integrated LED offers up to 100,000 hours of illumination, making this a sustainable solution for your setup.

Features & Benefits

• 24V DC voltage rating is compatible with standard electrical supplies
• At only 3g, this unit puts minimal strain on your panel
• Performs without a hitch in a broad operating temperature range between -25°C and +70°C

Applications

• Automotive manufacturing
• Industrial control processes
• Telecommunications networks
• Consumer electronics

Can this pilot light handle the demands of tough environments?

Yes, as once properly installed with the correct seal (221-1938), this pilot light carries IP40 and IP65 ratings. This means it's completely dust-proof and water-resistant and protects against tools and small wires larger than 1mm. So if you're using it in hygienic settings, you can wipe it down safely without damaging it.

Harmony series style 7

22 mm Ø compact range, simple to use and quick to install.
It cannot be removed from the front and protects the safety of people and installations.
Monolithic buttons and indicator lights with plastic bezel.
Connection by screws and brackets.
