Schneider Electric Potentiometer Mounting Kit, ZB4BD922

Schneider Electric Potentiometer Push Button Head, 22mm Cutout Diameter, 80g Weight - Harmony XB4 Series - ZB4BD922

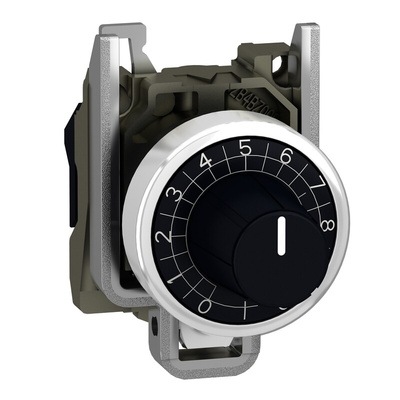

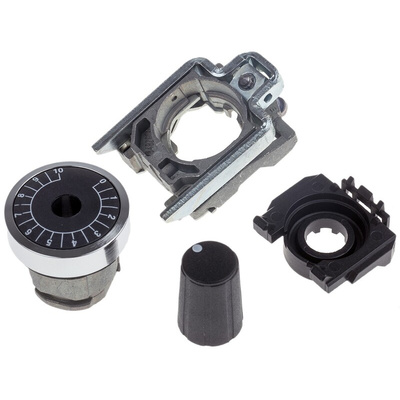

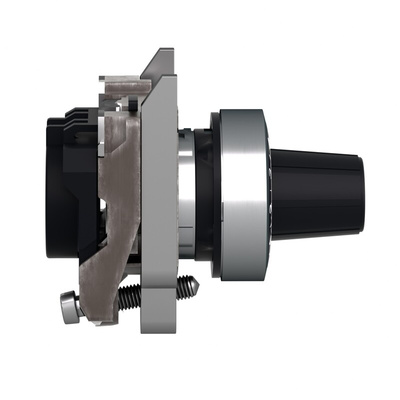

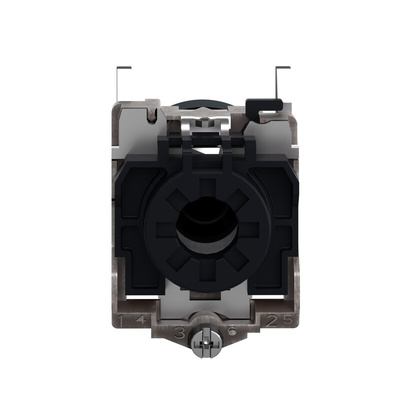

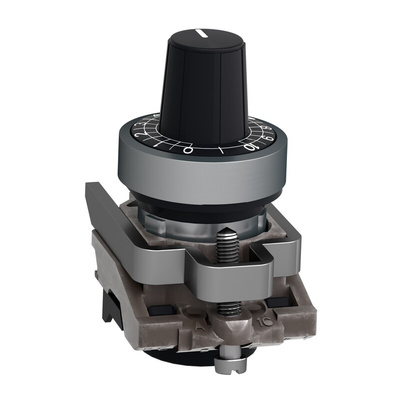

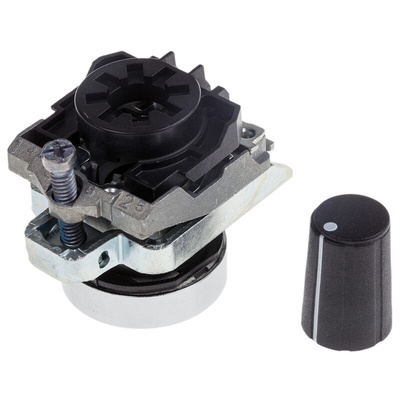

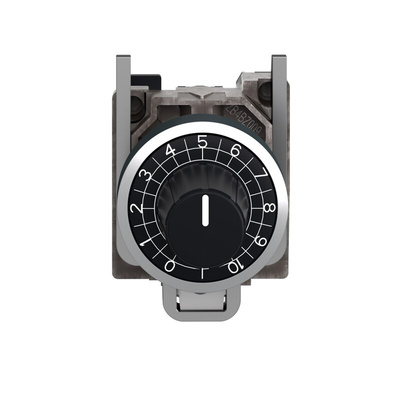

Need a way to simply and accurately control your resistor settings? Use this Schneider Electric potentiometer base and push button head. It's suitable for a device with a 22mm cutout diameter and a 44 to 55mm long shaft. The round shape makes the rotary-style key easy to handle and turn, even if you're wearing gloves. A white stripe contrasts against the black head to clearly indicate the position of the switch and help you select the correct inputs. Screw clamp terminals firmly secure wires and contacts to prevent malfunctions caused by loosening through vibration.

Features & Benefits

• Light weight of 80g for minimal strain to your potentiometer and panel
• IP66 rating indicates the unit is completely dust-tight and able to withstand high-pressure water jets

Applications

• Audio equipment
• Electronic circuits
• Gaming consoles
• Packaging and assembly lines

At what temperatures can I use this potentiometer push button head?

You can use the component in temperatures between -40°C and +70°C, making it suitable for harsh conditions.

Can I use this potentiometer push button head with heavy-duty applications?

Yes, it resists shocks and vibrations for versatility. Its chromium-plated metal bezel resists corrosion, even in damp conditions.
