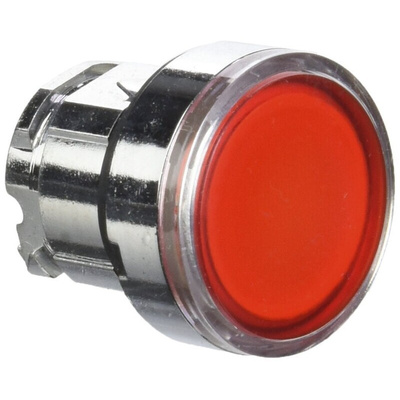

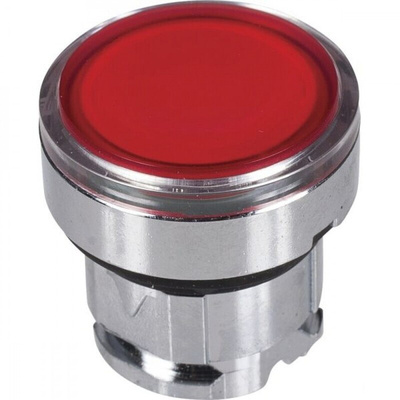

ZB4BH043, Schneider Electric Harmony XB4 Series Red Illuminated Maintained Push Button Head, 22mm Cutout, IP66, IP67, IP69K

Schneider Electric Maintained Actuation Pushbutton Head, Red, 22mm Cutout - Harmony XB4 Series - ZB4BH043

Activate the control system of your industrial installations using this Schneider Electric pushbutton head. It functions via a maintained button actuation, which ensures it stays switched on when pressed. The unit has ingress protection (IP) ratings of IP66, IP67 and IP69K, meaning you can safely install this device in dusty environments where high-pressure water jets and regular washdowns can be expected. You'll find pushbutton heads like this used as start/stop buttons on control panels for mechanical devices.

Features & Benefits

• 500,000 mechanical cycles for reliable, long-term use
• Chromium-plated metal for durability and resistance to corrosion
• -40°C to +70°C operating temperature range makes it suitable for use in a extreme environments

Applications

• Conveyor systems
• Manufacturing industry
• Automated doors

What kind of contact block should I use with this pushbutton head?

This pushbutton is designed for use with electrical bodies that have an integral LED (light-emitting diode), so the light shines through and illuminates the red button head. You can attach it securely using contact row clips at the back.
