ZB4BS94412, Schneider Electric Harmony XB4 Series Key Release Emergency Stop Push Button, Panel Mount, 22mm Cutout

Schneider Electric Domed Head Emergency Stop Push Buttons - ZB4-B Range

The Harmony XB4 metal range of modular control and signalling units combine simplicity of installation, flexibility, and robustness. This range meets the requirements of many industrial applications. These units are either complete products or separate components for customer assembly.

Environment

The performance of the Harmony XB4 range meets the most demanding international standards and approval, such as:
• EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, NEMA, and marine approvals
• Protection against ingress of solid objects, dust, and water: IP 66, 67, 69,69K and type 4X
• Shock protection level up to IK06
• High vibration resistance with shake proof connection screws (periodic retightening unnecessary)
For outdoor applications, the operating temperature oscillates from -40 °C to +70 °C/-40 °F to +158 °F

Common Applications

The range of XB4 can be used in the following applications:
•Industry (machine and control panels in packaging, material handling, material working, and pumping)
•Building and infrastructure (energy distribution panels, public works, restaurants, commercial buildings and airports)

This ZB4BS94412 is a chromium plated unit (bezel material), which has mechanical durability up to 300000 cycles.
The resistance to high pressure washer is 7000000 Pa at 55 °C, distance: 0.1 m.
This item is classified as ’’ Green Premium Product ’’, which provides the following:
•Environmental information about the unit
•Minimal use of hazardous substances in, and beyond, compliance with regulations (RoHS, REACh)
•A promise of sustainable and environmentally friendly performance
•Product Environmental Profiles (PEPs) for easy carbon footprint calculation
•End-of-life instructions for reduced cost and optimised recycling

Frequently asked questions & answers

What is the different between a push button switch for an emergency stop and a general-purpose push button switch?
A general-purpose push button switch is used for controls, e.g. to start machine operation or simply to switch modes. An emergency stop push button switch however, is mainly used as a safety measure to stop hazardous events.
What is the electrical shook protection class for this item?
This is a Class 1 conforming to IEC 61140

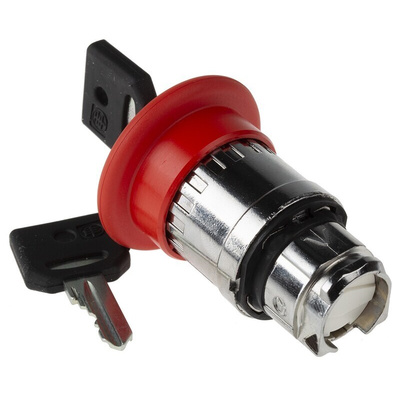

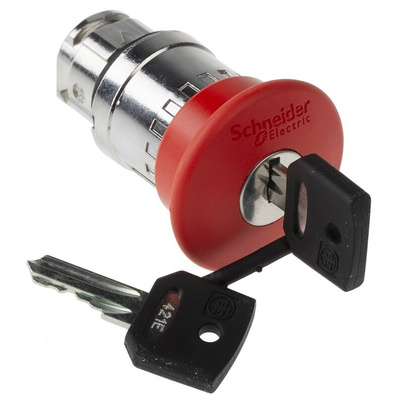

ZB4BS94412 Emergency Stop Push Button Switching Off Head.

• Harmony XB4 range.


• ZB4 Series.


• Chromium plated metal bezel.


• Diameter 22 mm (mounting).


• Round shaped push button.


• Red mushroom profile 40 mm diameter, no marking.


• Trigger action and mechanical latching with key release (centre withdrawal).


• Ronis 421E keylock.


• Durability 300000 cycles.


• Weight 0.098 kg.

Composition.

• C7 for 4 contacts using single blocks in front mounting. C8 for 4 contacts using single and double blocks in front mounting. C11 for 3 contacts using single blocks in front mounting. C15 for 1 contacts using single blocks in front mounting. C10 for 4 contacts using single and double blocks in front mounting.

Protection.

• NEMA 13, NEMA 4X, NEMA 4, NEMA 12.


• IK03 conforming to IEC 50102.


• Vibration resistance conforming to IEC 60068-2-6.


• Shock resistance conforming to IEC 60068-2-27.

Standards.

• EN/IEC 60947-5-1, GB 14048.5, EN/ISO 13850, EN/IEC 60947-5-5, IEC 60364-5-53, EN/IEC 60947-5-4, EN/IEC 60947-1, UL 508, EN/IEC 60204-1, CSA C22.2 No 14, JIS C8201-5-1, JIS C8201-1.

Certificates.

• RINA, LROS (Lloyds register of shipping), CSA, UL listed, DNV, BV, GL.
