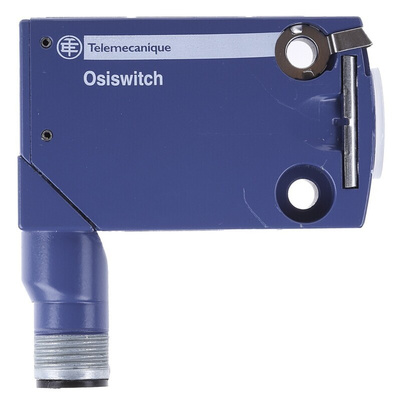

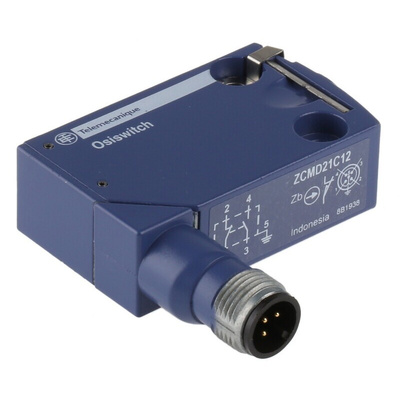

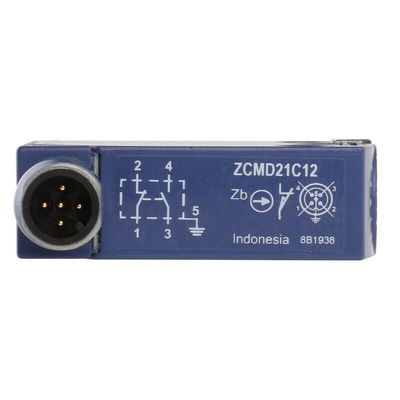

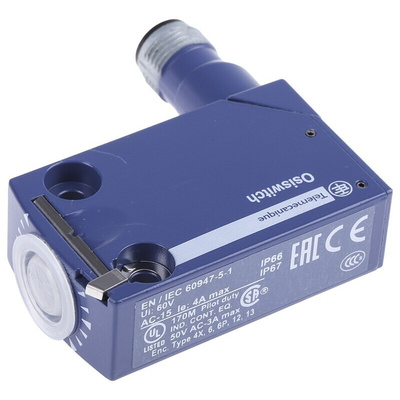

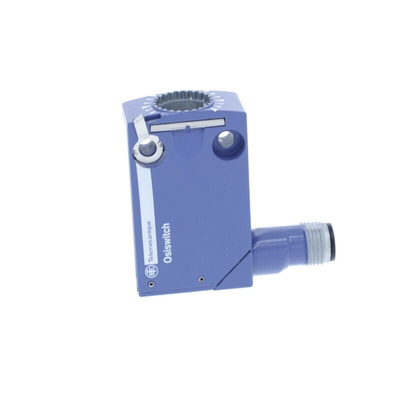

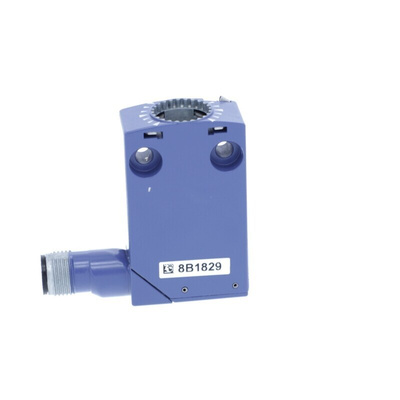

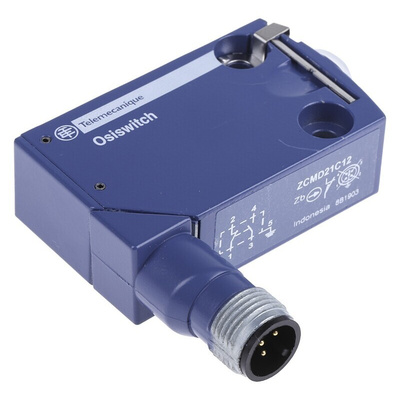

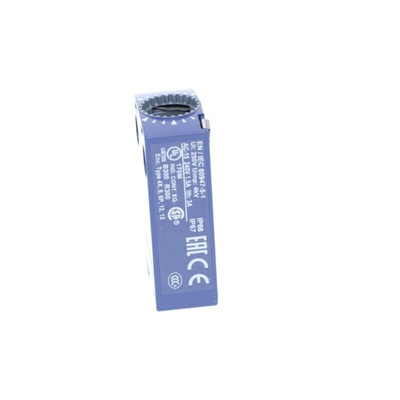

ZCMD21C12, Telemecanique Sensors OsiSense XC Series Limit Switch, NO/NC, IP66, IP67, DP, Zinc Alloy Housing, 240V ac Max, 1.5A Max

OsiSwitch Limit Switch Bodies

The OsiSwitch series contains a selection of bodies and levers that are compatible with products from the OsiSense XC limit switch range.

Features & Benefits

Limit Switch Body
Silver plated contacts with snap action
2 Poles
Durable and strong housing
Short circuit protection

Product Application Information

All industrial machines: packaging, materials handling, conveying, machining, food and beverage, service sector.

Telemecanique Sensors Limit Switch, M12 Connection, 65g Weight - OsiSense XC Series - ZCMD21C12

Need a device that hits the brakes when it counts? Use this limit switch from Telemecanique Sensors to start, stop or slow down your equipment when a specific limit is reached. Its silver-plated contacts are highly conductive to keep operations running smoothly. An IP67 rating means this unit's resistant to water, dust and contact with small tools and wires so it's durable in harsh settings. You can match this versatile limit switch with any head, actuator or connector from the XCKD, XCKP, and XCKT range.

Features & Benefits

• Wide operating temperature range between -25°C and +70°C means it handles demanding conditions
• Compact dimensions of 30 (W) x 50 (H) x 16mm (D) so it's handy in tight spaces
• Short-circuit protection to prevent system downtime caused by electrical faults
• Electrical durability of 5 million cycles to deliver reliable performance in the long term

Applications

• Conveyor systems
• Material handling
• Mining operations

How robust is this limit switch?

Thanks to its zinc-alloy housing, which is resistant to impact and corrosion, this is a reliably durable switch that withstands the demands of tough conditions.
