LG1K095Q714, Schneider Electric DOL Starter, DOL, 4 kW, 440 V ac, IP657, Пускатель

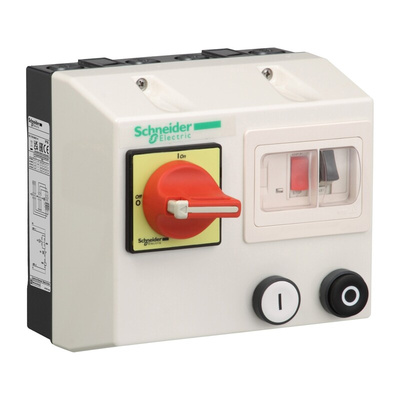

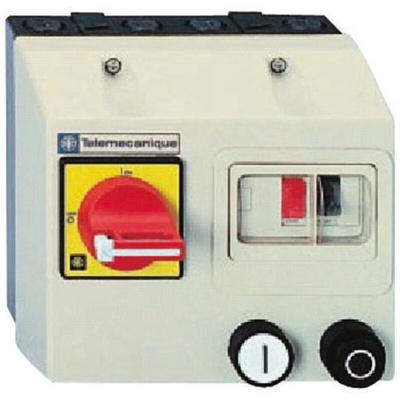

Schneider Electric DOL Starter, 440V AC Voltage Rating, 4kW Power Rating - LG1 Series - LG1K095Q714

This DOL starter from Schneider Electric reliably starts and stops your motor control applications. The enclosed, non-reversing unit comes with rotary switch actuation to ensure your selection remains in place, preventing accidental starts and stops. A steel base plate adds stability when you mount the starter on uneven surfaces, and it also helps with earthing and wiring. The strong polycarbonate front cover is impact-resistant so you can confidently use this starter with applications prone to jolts and vibrations.

Features & Benefits

• Lockable emergency-stop push button to immediately halt operations, preventing equipment damage and injuries
• Overload and short-circuit protection disconnect power supplies when faults are detected
• For added safety, the enclosure can't be opened when the unit is operational

Applications

• Automated industrial processes
• Fans
• Compressors
• Water pumps

What does this DOL starter's IP67 rating mean?

IP stands for ingress protection and it's an electrical enclosure rating to indicate how well a component is shielded from external elements. An IP67 rating means this DOL starter is dust-proof and protected against immersion in water, so you can use it in challenging settings.

Range Info - Plastic/Metal Combination Housings

These motor starters are available in a selection of formats. All have removable steel base plates for rigidity when mounting to an uneven surface and ease of earthing and wiring and an impact resistant polycarbonate front cover which is adaptable to enable the fitting of other components without drilling. Switching category is AC3 and the enclosures are IP65 rated.

TeSys Enclosed Starters
