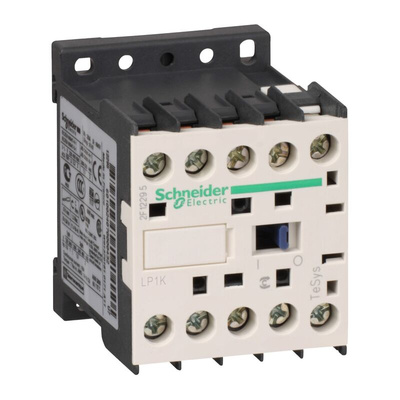

LP1K0601BD, Schneider Electric LP1K Series Contactor, 24 V dc Coil, 3-Pole, 6 A, 2.2 kW, 3NO, 690 V ac, Контактор

Schneider Electric Contactor, 8kV Rated Impulse Withstand Voltage, 5mA Minimum Switching Current - TeSys Series - LP1K0601BD

Need a small but mighty power solution for your industrial equipment? Choose this compact contactor from Schneider Electric to turn your machine off and on in a jiffy. It's one of the smallest models on the market at just 58 (L) x 45 (W) x 57mm (D), making it a cinch to add to busy control setups. Thanks to its 3NO configuration, switching on three systems at once is a walk in the park. With 6A current and 2.2kW power ratings, this product's a pro at controlling light-duty setups, like conveyor motors or other electro-domestic devices.

Features & Benefits

• Broad operating temperature range between -25°C and +50°C for use in demanding applications
• Screw-clamp terminals for simple wiring and vibration-proof connections
• Mounts on either a DIN rail or a plate, to suit your setup
• 10-million cycle mechanical lifespan for long-term performance

Applications

• Shipping and packaging industry
• Railway systems
• Manufacturing facilities
• Water management

What's the difference between TeSys K and TeSYS D?

The main difference between TeSys options is the current rating range. TeSys K products like this one support between 0 and 16A, while those in the TeSys D series support 9 to 150A. This makes TeSys K suitable for lower-voltage applications.

Approvals

CSA, UL.

Standards

VDE 0660, BS 5424, NF C 63-110, IEC 60947.

K Series Contactors Catalogue

Datasheet LP1K0601BD

Instruction Sheet - LC1K

Product Environmental Profile
