VCD0, Schneider Electric 3P Pole Panel Mount Isolator Switch - 25A Maximum Current, 15W Power Rating, IP20, IP65

Schneider Electric Isolator Switch - Vario Range

Forming part of Schneider Electrics Vario Switch range is this selection of isolator switches which are sometimes referred to as switch disconnectors. Comprised of a strong and durable material that is suitable for a multitude of environments, these three-pole versions are perfectly suited for manual motor control applications. Super easy to connect and wire as it comes to you undrilled, which enables variable cable entry positions.

switch-disconnectors are compact and robust, they are ideal for hard-wearing industrial environments. This range of isolator switches from Schneider is suitable for use in applications where there is a need to disconnect electrical equipment from the circuit. The need for this form of local isolation is most commonly needed for repair and maintenance of the electrical equipment on the de-energised circuit. These disconnect switches can also be used as safety switches.

Features & Benefits

• Performs local isolation, manual override & safety switch functions
• For use in applications where there is a need to disconnect electrical equipment from the circuit, most commonly needed for repair and maintenance of electrical equipment
• These disconnect switches can also be used as safety switches
• Created and designed to safely isolate a circuit whilst it is being used or maintained

What is the difference between a fused switch disconnector and a non-fused switch disconnector?

Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary to disconnect or isolate a circuit.

How does an isolator switch work?

This type of isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.

Note

The figures quoted for rated operational power within the price table are with respect to a voltage of 230/240V, with figures within brackets ( ) being those with respect to a voltage of 690V.
The higher current rating refers to use in free air, the lower current rating represents use in an enclosure.

Approvals

UL, CSA, GL

Schneider Electric Isolator Switch, Rotary Dial Actuator, 400V AC Voltage Rating - TeSys Series - VCD0

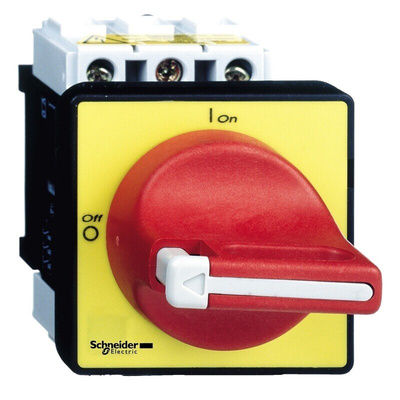

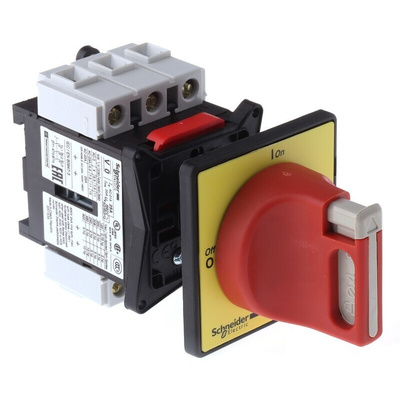

Need to inspect your equipment? Boost safety with this isolator switch from Schneider Electric. It quickly cuts power to attached circuits with a simple 45° turn of the front-facing rotary actuator. You can mount it to a cabinet's door, meaning the device stays within easy reach for speedy disconnection. A three-pole design makes it a sure fit for single-phase and three-phase power supplies. As the red handle stands out clearly against a yellow plate, you'll have no trouble spotting the isolator.

Features & Benefits

• Labelled front plate clearly indicates switch status
• Lasts for up to 100,000 electrical cycles so it's a dependable choice
• Carries current up to 25A to handle demanding settings
• Secure screw terminals prevent disruption caused by vibration or movement
• Handles surge voltages up to 8kV to cut the risk of damage from power faults

Applications

• Plastic processing
• Data centres
• Packaging industry

Can I lock the handle on this product?

Yes, the handle takes up to three padlocks sized between 4 and 8mm to keep your system secure against tampering.
