VCD02, Schneider Electric 3P Pole Panel Mount Isolator Switch - 12A Maximum Current, 7.5kW Power Rating, IP20, IP65

Schneider Electric Isolator Switch - Vario Range

Forming part of Schneider Electrics Vario Switch range is this selection of isolator switches which are sometimes referred to as switch disconnectors. Comprised of a strong and durable material that is suitable for a multitude of environments, these three-pole versions are perfectly suited for manual motor control applications. Super easy to connect and wire as it comes to you undrilled, which enables variable cable entry positions.

switch-disconnectors are compact and robust, they are ideal for hard-wearing industrial environments. This range of isolator switches from Schneider is suitable for use in applications where there is a need to disconnect electrical equipment from the circuit. The need for this form of local isolation is most commonly needed for repair and maintenance of the electrical equipment on the de-energised circuit. These disconnect switches can also be used as safety switches.

Features & Benefits

• Performs local isolation, manual override & safety switch functions
• For use in applications where there is a need to disconnect electrical equipment from the circuit, most commonly needed for repair and maintenance of electrical equipment
• These disconnect switches can also be used as safety switches
• Created and designed to safely isolate a circuit whilst it is being used or maintained

What is the difference between a fused switch disconnector and a non-fused switch disconnector?

Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary to disconnect or isolate a circuit.

How does an isolator switch work?

This type of isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.

Note

The figures quoted for rated operational power within the price table are with respect to a voltage of 230/240V, with figures within brackets ( ) being those with respect to a voltage of 690V.
The higher current rating refers to use in free air, the lower current rating represents use in an enclosure.

Approvals

UL, CSA, GL

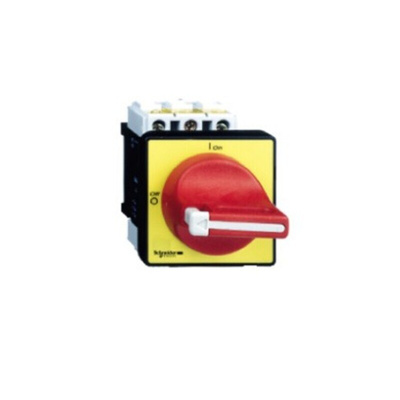

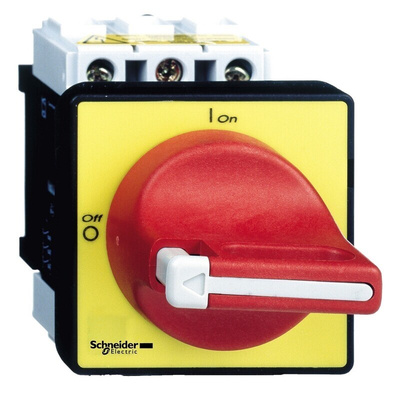

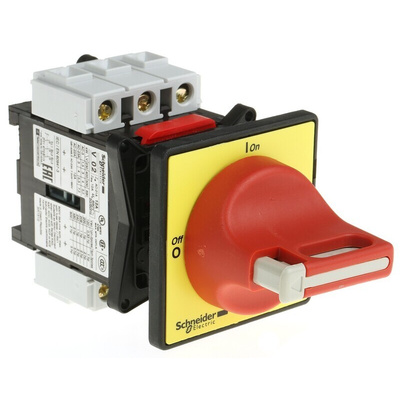

Schneider Electric Isolator Switch, Rotary Dial Actuator, 60 (W) x 60mm (H) Base Dimensions - TeSys Series - VCD02

Power your system down with confidence using this isolator switch from Schneider Electric. A simple turn of its rotary dial actuator cuts off the electricity supply to attached equipment so you can safely carry out repairs and maintenance. As this is a three-pole model, it can be used with single-phase and three-phase setups for versatile switching. Don't worry about tampering or accidental reactivation, as the handle holds up to three padlocks to keep it secure. This isolator switch has an electrical lifespan of up to 100,000 operations so you can count on it over long periods.

Features & Benefits

• Bright red and yellow colours mean it's easy to spot in emergency situations
• Handles AC and DC voltages for versatile switching
• Measures just 60 (W) x 60 (H) x 74mm (D) to fit into a busy system
• Screw terminals for quick and secure wiring
• Mounts into a cabinet door for easy access

Applications

• Electronics manufacturing
• Material handling
• Power distribution systems

How do I identify the contact status of this isolator switch?

This unit comes with a labelled front face that indicates its actuator's position, so you can easily check the device's switch status.
