XACA2013, Schneider Electric 1NC + 2 NO Push Button Pendant Station, Подвесная станция

Schneider Electric Pistol Grip Push Button Pendant Stations - XACA Series

Created and designed for predominantly standard or medium-duty control circuit applications, Schneider Electrics push-button pendant station provides a covering case for the internal push button. The enclosures are made up from a rugged, double insulated thermoplastic material. This unit is a simple yet effective mechanical switch which is commonly used to control the hoist and lowering function within a machine or device. Strategically designed for easy handling and operation, even when the user has is wearing heavy work gloves.

Common Applications of a Push Button Pendants Station

Due to the nature of the component and its capability of controlling certain pieces of machinery, users will commonly find push button pendant stations being used within an industrial environment for machines such as cranes that hoist overhead, fixed hoists, beam hoists and similar types of machinery.

• The XACA series from Schneider has single and two-way speed versions


• Double insulated


• Shock and corrosive resistant


• Ease of operation

Schneider Electric Pistol Grip Push Button Pendant Station -XACA2013

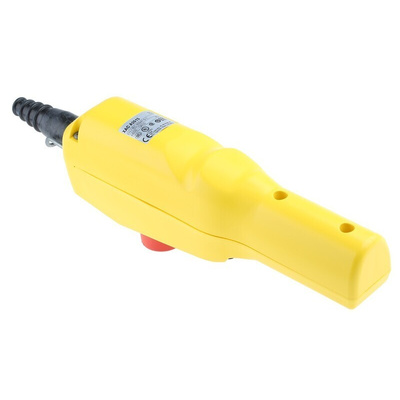

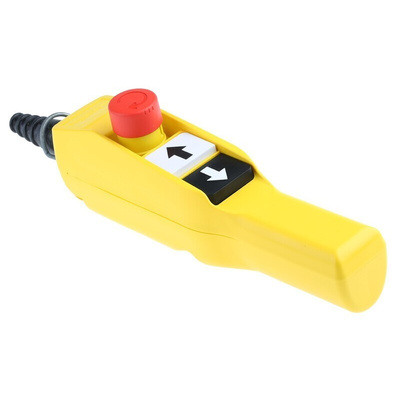

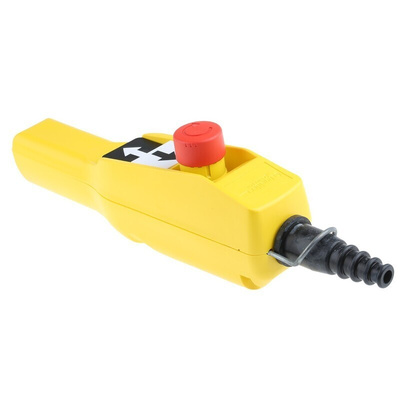

Forming part of the harmony XAC series, this pistol grip pendant station is brought to you complete and ready use - no need to set up. The pendant features one emergency stop button and two push buttons.

Features & Benefits

• First pushbutton 1 NO raise, slow, second pushbutton 1 NO lower, slow and stop pushbutton Ø 30 mm 1 NC, latching


• With mechanical interlocking


• Aesthetically pleasing, finished with bright yellow colour, making it easy to locate


• Mechanically durable up to 1000000 cycles


• The cable entry has a rubber sleeve with stepped entry, the cable outer diameter is 7...15mm


• This pendant control station has a conventional enclosed thermal current of 10A


• Standards - CSA C22-2, No 14 EN/IEC, 60204-32 EN/IEC and 60947-5-1 UL 508


• Certifications - CSA, UL


• The unit features an ingress protection rating of IP65, this means that the pendant control station is rated as dust tight and is protected against water projected from a nozzle


• Shock-resistant of 100gn conforming to EIC 60068-2-27


• Features and rated insulation voltage of 600V (degree of pollution:3) which conforms to IEC 60947-1


• The rated impulse withstand voltage is 6 kV which conforms to IEC 60947-1
