XALK188E, Schneider Electric Harmony XALK Series Key Release Emergency Stop Push Button, Surface Mount, SPDT

Schneider Electric Emergency Stop Push Button Switch - Harmony XALK Series

The Harmony XALK range of emergency push buttons by Schneider offer you easier, flexible installation. Strong polycarbonate material, means greater reliability in harsh environments. High-grade e-stop function, the mushroom head emergency button trigger action offers an instantaneous cutoff once the alarm is raised to ensure total safety in your working environment.

Harmony XALK from Schneider is compliant with EN/IEC 60204-1 and EN/ISO & Machinery Directive 2006/42/EC.

Features and Benefits

• Bright Yellow RAL 7035 & Light Grey RAL 7035 panel base unit for greater visibility and awareness in your working environment.
• Mushroom head push button, red unmarked for clear visibility. Easily resettable with turn-to-release.
• IP65, IP69K, IP67, IP66, NEMA 4 dust and damp proofing as standard - ensuring reliability in harsh environments. Greater resistance to chemicals and/or double electrical insulation.
• Low-load electrical contacts (1 NO + 1 NC contact) unmarked for instant cutoff where needed.
• Plug & Play surface mountable.
• Turn to release easily resettable control where the unit has been alerted and activated for easier Start-Stop operations.
• Screw clamp connection, with pins for printed circuits
• Reliable short-circuit protection, featuring a 10 A fuse cartridge within the Emergency Push Button.
• Schneider Green Premium product as standard across the XALK Emergency Stop Button range.
• 18-month manufacturer warranty with Schneider
• Compact in nature perfect for confined spaces where E-stops are critical for dangerous machinery.

Applications

• Energy infrastructure industries
• Food and Beverage industries
• Water and Waste Water management systems
• Metal, Mining and Minerals industries
• Oil and Gas industries
• Marine & Oil
• Car Washes

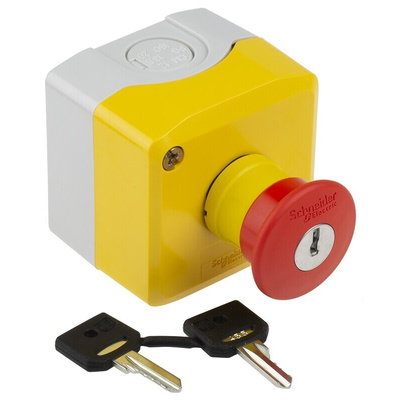

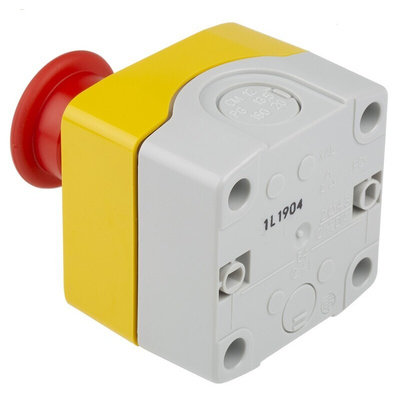

Schneider Electric Emergency Stop Push Button - XALK188E

• Created and designed to turn off machinery in the event of an emergency, featuring an emergency switching off function and an emergency stop function
• Forms part of the Harmony XALK range of products
• The base colour is light grey whilst the cover colour is yellow
• Comprised of a polycarbonate material
• Red mushroom operator profile, un-marked
• Key release to reset
• Mechanically durable for up to 3000000 cycles
• The connection terminals are - Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 and screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1

Machine Guarding and Safety Range Overview

XALK188E Datasheet

Green Premium ecolable

Product Environmental Profile
