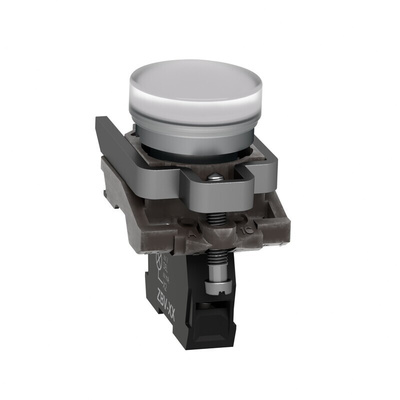

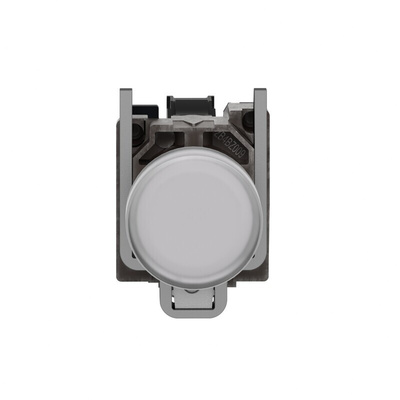

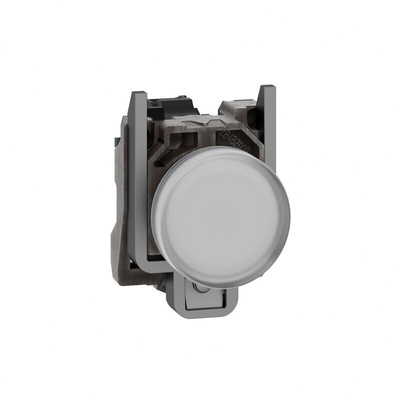

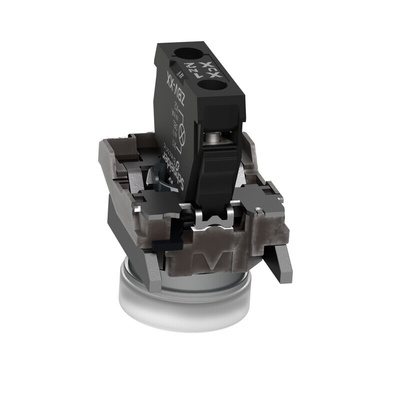

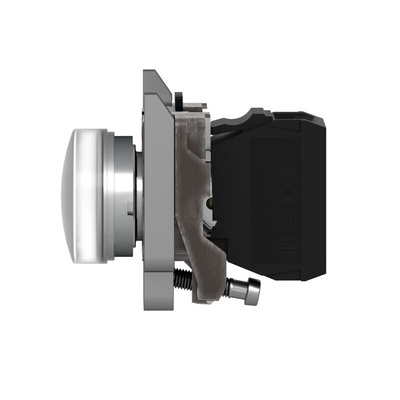

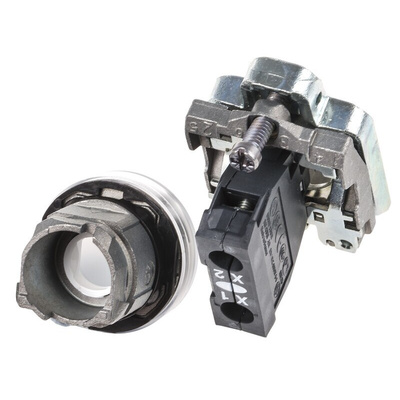

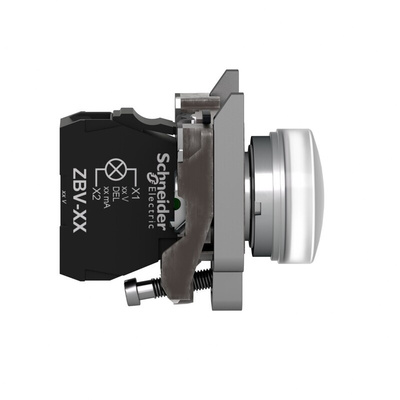

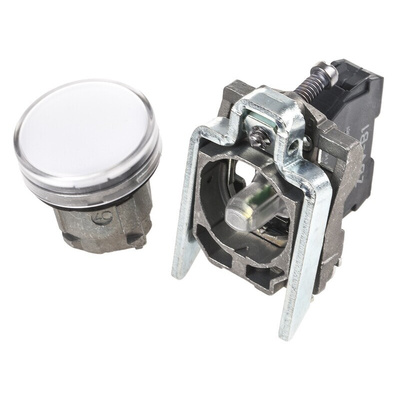

XB4BVB1, Schneider Electric, Harmony XB4, Panel Mount White Universal LED Pilot Light, 22mm Cutout, IP66, IP67, IP69(IP69K),

Schneider Electric Harmony XB4 LED Pilot Light Series

Providing functions to machines and panels, Schneider Electric combines performance with attractive design in the XB4 22 mm pilot light series. Reinforced with flushed mounting kits, this series is quick and simple to install. Modular design means these lights are adaptable and flexible even in the most demanding environment. Harmony XB4 light series also offers a wide variety of solutions, materials, LED colour, connection and fixings as well as accessories to customise panels. Connection types available include screw clamp, faston connector, spring terminal and printed circuit board.

Each LED pilot light has a 22 mm mounting diameter, in return they offer high vibration resistance, shake proof terminal screws and a shock protection level of up to IK06.

Features and Benefits:

• High vibration resistance with shake-proof terminal screws
• Shock protection
• -40°C –to 70°C operating temperature
• Wide choice of contact blocks
• High performance in demanding environments
• Flexibility and Adaptability
• Quick and simple installation

Protection ratings & Safety features:

• Conformity with IEC, UL, CSA, CCC EAC, and JIS standards
• Group and Category: 112 D-EX tD A21
• Certificate No. INERIS 04 ATEX 9004U
• CE marking and marine approvals
• Up to IP66, 67, 69, 69K, and type 4X protection ratings
• Up to IK06 shock protection

Applications - The XB4 series can be used for general purpose, Building and Infrastructure and Industry application, other applications include:
• Machine and control panel
• Food and beverage
• Automotive
• Restaurants
• Commercial buildings

Note

Manufacturers part number with EX denotation indicates EX rated product.
Direct supply type will require separate purchase of appropriate BA9s incandescent lamp, neon or LED.
Transformer types are supplied complete with BA9s incandescent.
LED types are complete with integral LED light block.

Schneider Electric Pilot Light, LED Lamp Type, 18mA Current Consumption - Harmony XB4 Series - XB4BVB1

Take the guesswork out of process control with this pilot light from Schneider Electric. It shows you when machinery is active to make monitoring a cinch, even on a busy panel. The LED lamp is visible in most lighting conditions, so you won't be left in the dark. Thanks to its low current consumption of 18mA, this is an energy-efficient choice. It delivers a long service life of 100,000 hours, so you can rely on it to stay the course.

Features & Benefits

• IP69K rating means it's dustproof and withstands high-temperature, high-pressure water jets
• Safe for use in demanding environments, thanks to its wide operating temperature range between -40°C and +70°C

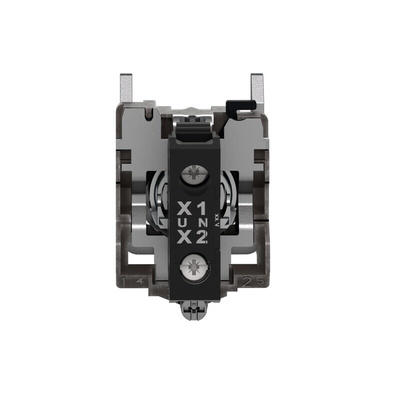

• Screw clamp terminals achieve a secure electrical connection that won't wobble loose

Applications

• Packaging lines
• Automotive manufacturing
• Telecommunications equipment
• Medical devices

Can this pilot light handle power surges?

Yes, this pilot light can withstand surges up to 1kV for protection against electrical hazards.

What size cutout does this pilot light fit into?

It fits into a cutout diameter of 22mm, making it a sure fit for standard setups.
