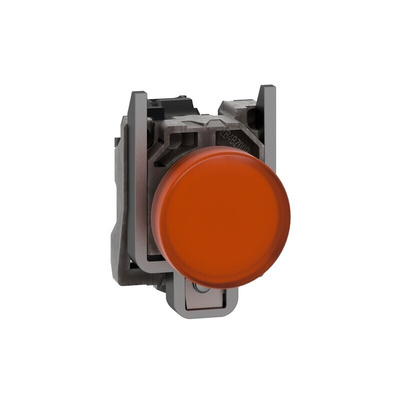

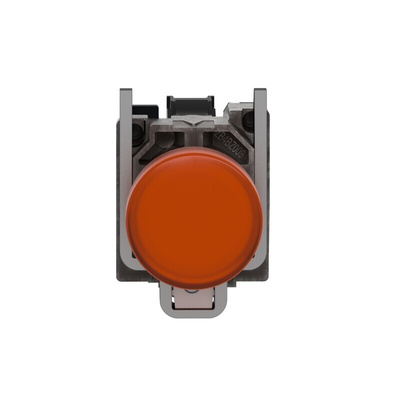

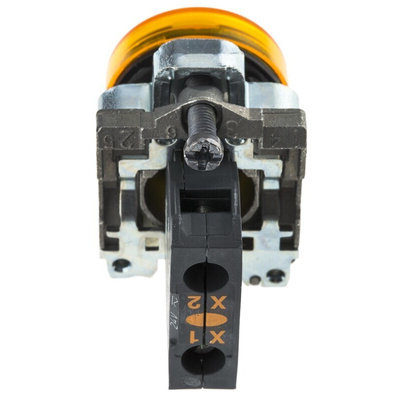

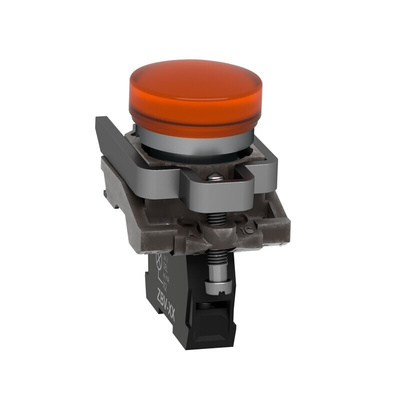

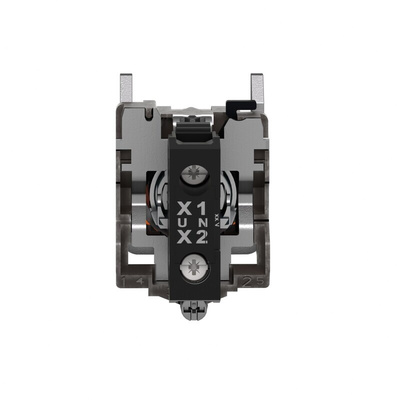

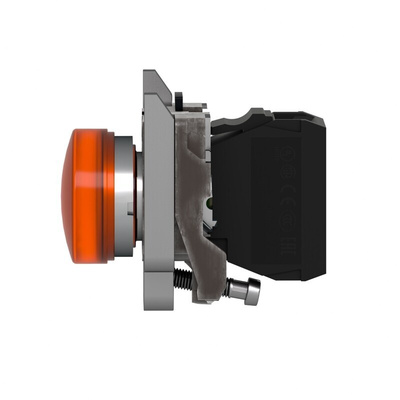

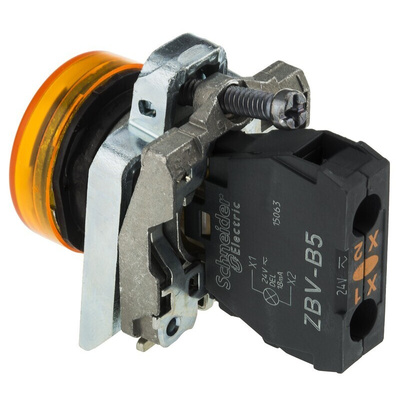

XB4BVB5, Schneider Electric, XB4, Panel Mount Orange Universal LED Pilot Light, 22mm Cutout, IP66, IP67, IP69(IP69K), Round, 24V

Schneider Electric Harmony XB4 LED Pilot Light Series

Providing functions to machines and panels, Schneider Electric combines performance with attractive design in the XB4 22 mm pilot light series. Reinforced with flushed mounting kits, this series is quick and simple to install. Modular design means these lights are adaptable and flexible even in the most demanding environment. Harmony XB4 light series also offers a wide variety of solutions, materials, LED colour, connection and fixings as well as accessories to customise panels. Connection types available include screw clamp, faston connector, spring terminal and printed circuit board.

Each LED pilot light has a 22 mm mounting diameter, in return they offer high vibration resistance, shake proof terminal screws and a shock protection level of up to IK06.

Features and Benefits:

• High vibration resistance with shake-proof terminal screws
• Shock protection
• -40°C –to 70°C operating temperature
• Wide choice of contact blocks
• High performance in demanding environments
• Flexibility and Adaptability
• Quick and simple installation

Protection ratings & Safety features:

• Conformity with IEC, UL, CSA, CCC EAC, and JIS standards
• Group and Category: 112 D-EX tD A21
• Certificate No. INERIS 04 ATEX 9004U
• CE marking and marine approvals
• Up to IP66, 67, 69, 69K, and type 4X protection ratings
• Up to IK06 shock protection

Applications - The XB4 series can be used for general purpose, Building and Infrastructure and Industry application, other applications include:
• Machine and control panel
• Food and beverage
• Automotive
• Restaurants
• Commercial buildings

Note

Manufacturers part number with EX denotation indicates EX rated product.
Direct supply type will require separate purchase of appropriate BA9s incandescent lamp, neon or LED.
Transformer types are supplied complete with BA9s incandescent.
LED types are complete with integral LED light block.

Schneider Electric Pilot Light, 18mA Current Consumption, 4kV Rated Impulse Withstand Voltage - Harmony XB4 Series - XB4BVB5

Keep a keen eye on machine activity with this pilot light from Schneider Electric. Its bright orange colour indicates the operating status of your equipment at a glance, so you're kept up to date at all times. The unit's LED lamp consumes just 18mA of current, making it an energy-saving workmate. Thanks to screw terminals, linking wires to the device is a walk in the park – all you'll need is a simple screwdriver. Chromium-plated metal housing offers reliable impact protection, so you can rest assured of reliable performance in harsh environments.

Features & Benefits

• Works reliably in temperatures between -40°C and +70°C
• Rated impulse withstand voltage of 4kV to handle sudden power spikes without suffering damage
• Service life of 100,000 hours, so you can depend on its performance over the long term
• Light weight of 80g puts minimal strain on your panel

Applications

• Loading bays
• Air travel industry
• Switchgear systems

What maintenance does this pilot light need?

This unit is made of weatherproof materials, so apart from routine cleaning, it doesn't need any maintenance.
