XB5AD33, Schneider Electric Selector Switch - (2 NO) 3 Positions, Поворотный переключатель

Schneider Electric Key Switches - Harmony XB5 Series

The Harmony XB5 range of Key Switches from Schneider Electric brings you reliability and assurance in site safety via the use of a key to control the output to the circuit. The device is suitable for industrial controls where safety is paramount, especially in areas where hazardous machinery needs accountable operation.

Features & benefits

• 1,000,000 cycles of electrical & mechanical durability
• Phillips no 1, Pozidriv no 1 screwdriver profile head screws used
• Tough Chromium-plated metal, giving the key switch a smooth, silver finish. Highly resistant to corrosion
• Compact 22 mm mounting diameter and lightweight, perfect for when space is tight
• 18-month manufacturer warranty with Schneider Electric
• Schneider Green Premium product offering sustainability to you

Applications

• Dangerous equipment such as motors that require human intervention to operate
• Public buildings to control lighting in restrooms, corridors, etc

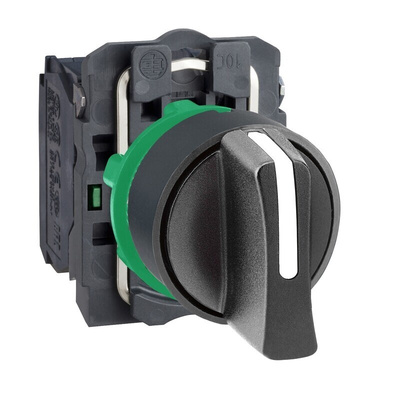

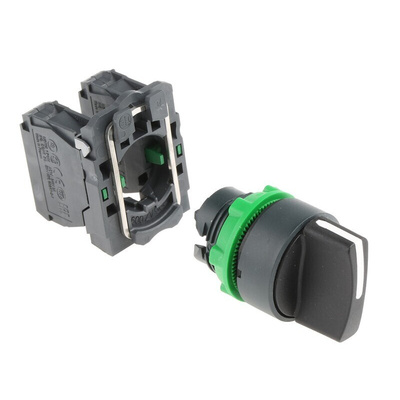

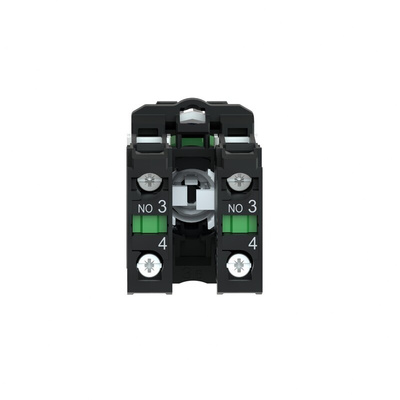

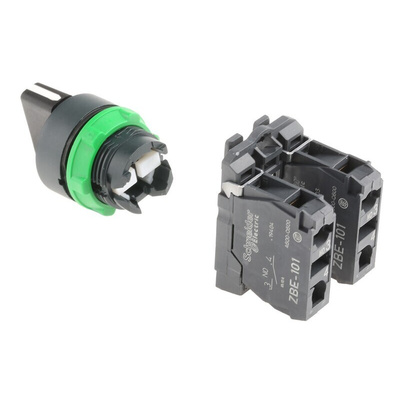

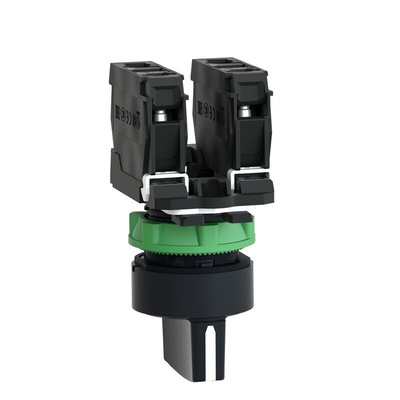

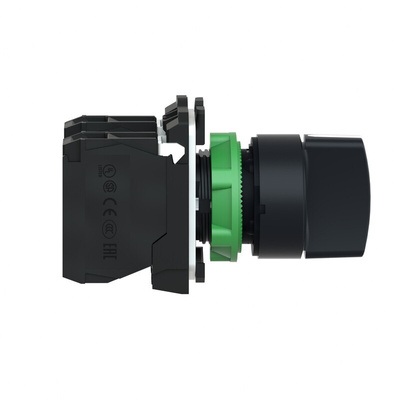

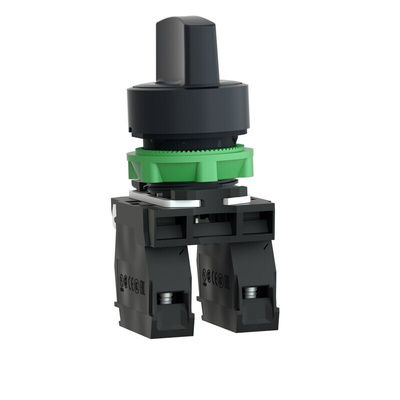

Schneider Electric Selector Switch, 600V AC/DC Maximum Voltage, 2NO Normal State Configuration - Harmony XB5 Series - XB5AD33

Get hands-on control over hazardous equipment with this selector switch from Schneider Electric. It has three positions, so it's useful for toggling between settings such as speed on motors or brightness in lighting systems. An IP69K rating means it's dust-tight and withstands high-pressure and high-temperature washdowns, so it's a good fit for hygiene-critical jobs. A standard 22mm mounting diameter means there's room for this component even on a crowded panel. Installation is straightforward thanks to screw terminals, so there's no need for specialist equipment.

Features & Benefits

• TH protective treatment ensures resistance to corrosion and industrial contaminants
• Compact dimensions of 41.5 (L) x 30 (W) x 70mm (D) mean it fits neatly on a panel
• Mechanical durability of one million cycles, so you can be sure of its longevity
• Free from mercury and toxic heavy metals to support a healthy environment

Applications

• HVAC systems
• Processing and packaging plants
• Timber processing

Can I use this selector switch in hot conditions?

Yes. This selector switch delivers reliable performance in temperatures between -40°C and +70°C, so it's ideal for use in challenging environments.

Approvals

BV, CSA, DNV, GL, LROS (Lloyds register of shipping), RINA, UL.

Standards

EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, UL 508, CSA C22.2 No 14.
