XB5AS8445, Schneider Electric Harmony XB5 Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, SPDT, IP66,

Schneider Electric Emergency Stop Push Buttons - Harmony XB5 Series

Introducing the Harmony XB5 series of E-Stop Push Buttons. The range comprises of spring return emergency "E-stop" mushroom head push buttons with snap-action locking. The XB5 series is to the highest industry standard, conforming to IEC, UL, CSA standards and more.

Features.

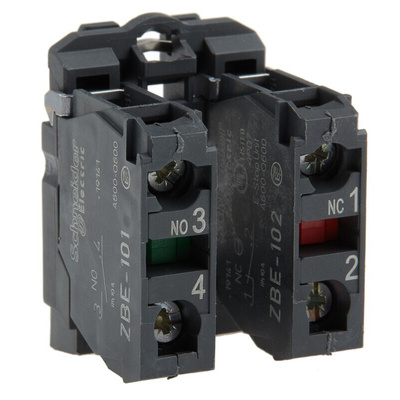

• 1 NO + 1 NC contact configuration


• Turn-to-release reset functionality, easily operated by different levels of expertise


• Red "mushroom" styled head, prominent in most environments to signal the safety cut off point for machines


• Compact in nature, perfect for environments that require space, easy for mounting


• Mechanical durability of approximately 300,000 cycles provides you with the reassurance of emergency cut off when required


• Conforms to the following standards & protection degrees:


• - High protection ratings include: IP67, IP66, IP69K & IP69 (perfect for environments with dust, water or chemical interference).


• - NEMA 13, 4X (providing further protection in tough environments with a lot of dust, water or chemical interference)


• - Over-voltage category Class 2, conforming to IEC 60536


• - Highly versatile in extreme temperatures, operating at -40 to 70°C


• Vibration & shock resistance as standard, tough and durable outer body material with tough plastics on both the bezel and fixing collar means you can rely on this push button switch in difficult scenarios that require immediate stop without interruption


• Short circuit protection via a 10 A cartridge fuse


• Schneider Green Premium product as standard across the XB6 Emergency Stop Button range


• 18-month manufacturer warranty with Schneider

Applications

• Machine, chemical & Marine applications (particularly with water/chemical involvement)


• Service sectors such as restaurants, kitchens, car washes and more

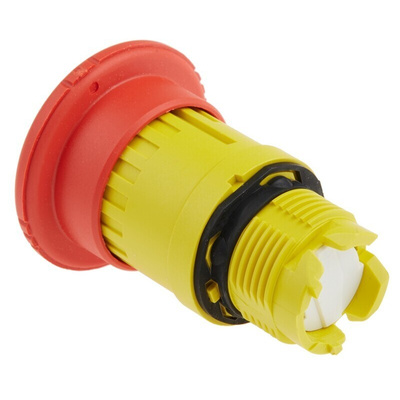

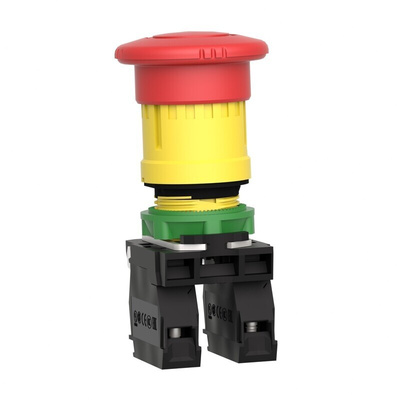

Schneider Electric Emergency Stop Push Button, Red and Yellow Colours, 40mm Actuator Diameter - Harmony XB5 Series - XB5AS8445

Power down faulty kit with the press of a switch using this Schneider Electric emergency stop push button. It cuts off the flow of power to shut down equipment in an instant. A latching mechanism holds the switch down until it's manually released so you can safely carry out maintenance. Mounting this component is simple as it slots into an industry-standard 22mm cutout. A large 40mm diameter mushroom actuator means it's a cinch to operate when seconds count.

Features & Benefits

• IP69K rating means it's fully protected against dust and hot, high-pressure water jets to work in challenging settings
• Lifespan of one million electrical cycles for reliable long-term use
• Silver alloy contacts are highly conductive for reliable switching
• Insulating plastic housing makes it safe to handle

Applications

• Beverage production
• Automotive manufacturing
• Processing plants

How many circuits can I connect this push button to?

This product controls one circuit and comes with an extra signalling contact. This makes it easy to notify your controller when you press the push button, automatically shutting down linked machines for efficient system management.
