XB5AS9445, Schneider Electric Harmony XB5 Series Key Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, SPDT

Schneider Electric Emergency Stop Push Buttons - Harmony XB5 Series

Introducing the Harmony XB5 series of E-Stop Push Buttons. The range comprises of spring return emergency "E-stop" mushroom head push buttons with snap-action locking. The XB5 series is to the highest industry standard, conforming to IEC, UL, CSA standards and more.

Features.

• 1 NO + 1 NC contact configuration


• Turn-to-release reset functionality, easily operated by different levels of expertise


• Red "mushroom" styled head, prominent in most environments to signal the safety cut off point for machines


• Compact in nature, perfect for environments that require space, easy for mounting


• Mechanical durability of approximately 300,000 cycles provides you with the reassurance of emergency cut off when required


• Conforms to the following standards & protection degrees:


• - High protection ratings include: IP67, IP66, IP69K & IP69 (perfect for environments with dust, water or chemical interference).


• - NEMA 13, 4X (providing further protection in tough environments with a lot of dust, water or chemical interference)


• - Over-voltage category Class 2, conforming to IEC 60536


• - Highly versatile in extreme temperatures, operating at -40 to 70°C


• Vibration & shock resistance as standard, tough and durable outer body material with tough plastics on both the bezel and fixing collar means you can rely on this push button switch in difficult scenarios that require immediate stop without interruption


• Short circuit protection via a 10 A cartridge fuse


• Schneider Green Premium product as standard across the XB6 Emergency Stop Button range


• 18-month manufacturer warranty with Schneider

Applications

• Machine, chemical & Marine applications (particularly with water/chemical involvement)


• Service sectors such as restaurants, kitchens, car washes and more

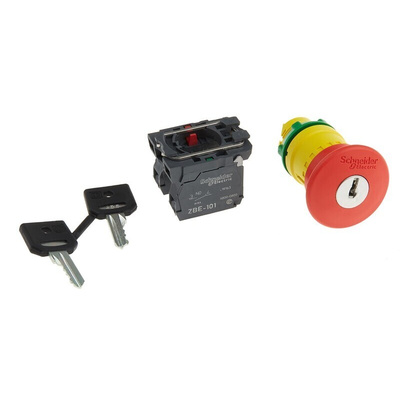

XB5AS9445 Harmony XB5 Schneider Electric Emergency Stop Push Button.

• Emergency stop, emergency switching off push button.


• Harmony XB5.


• Bezel – Plastic, dark grey.


• Plastic fixing collar.


• Mounting diameter 22 mm.

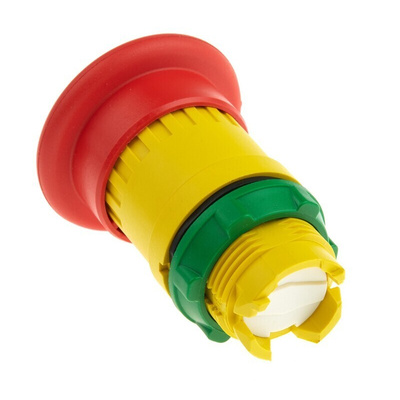

• Round shape, standard, red mushroom 40 mm diameter (unmarked).


• Release reset, Key release.


• Operator – Trigger action and mechanical latching.

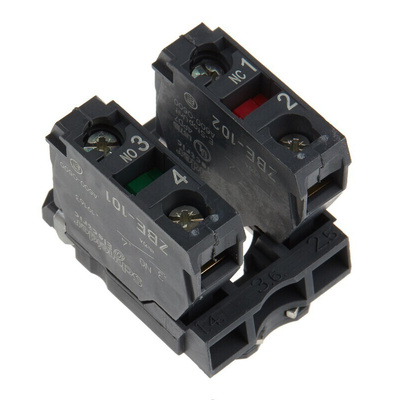

• 1 NO plus 1 NC Contact, slow break.


• Screw clamp terminal connection.


• 300000 Durability cycles.


• Silver alloy (Ag/Ni) contacts.


• Vibration and shock resistant.


• Weight 0.112 kg.

Screw Head Shape.

• Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat 4 mm screwdriver, Slotted compatible with flat 5.5 mm screwdriver.

Protection.

• IP 66 to IEC 60529, IP 67, IP 69, IP 69K, NEMA 13, NEMA 4X, IK 03 to IEC 50102.

Standards.

• EN/IEC 60204-1, JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60364-5-53, EN/ISO 13850, EN/IEC 60947-5-5, EN/IEC 60947-1, JIS C8201-1.

Certification.

• CSA, LROS (Lloyds register of shipping,) DNV, RINA, BV, UL listed, GL.
