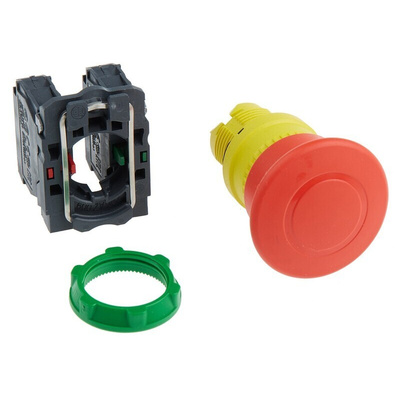

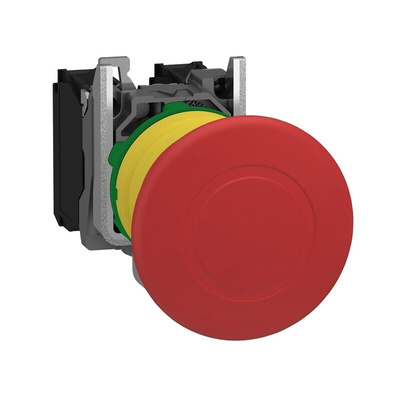

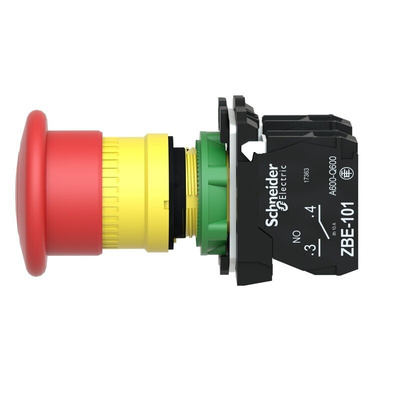

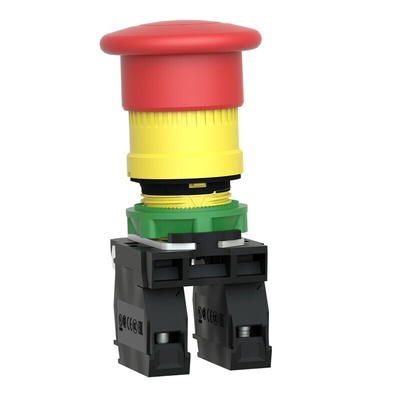

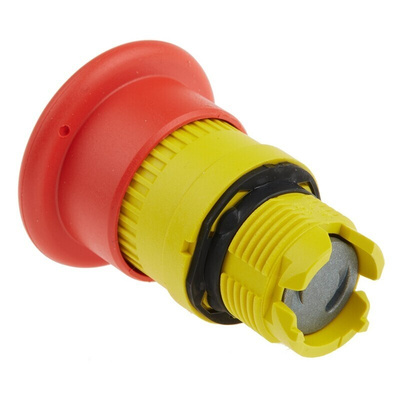

XB5AT845, Schneider Electric Harmony XB5 Series Pull Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, SPDT, IP66,

Schneider Electric Emergency Stop Push Buttons - Harmony XB5 Series

Introducing the Harmony XB5 series of E-Stop Push Buttons. The range comprises of spring return emergency "E-stop" mushroom head push buttons with snap-action locking. The XB5 series is to the highest industry standard, conforming to IEC, UL, CSA standards and more.

Features.

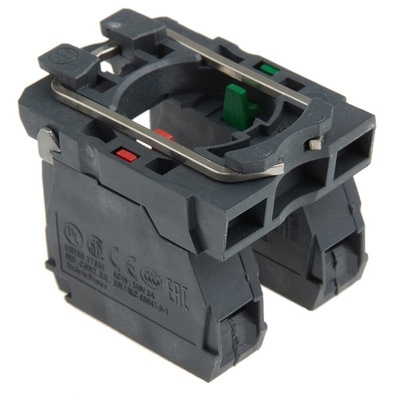

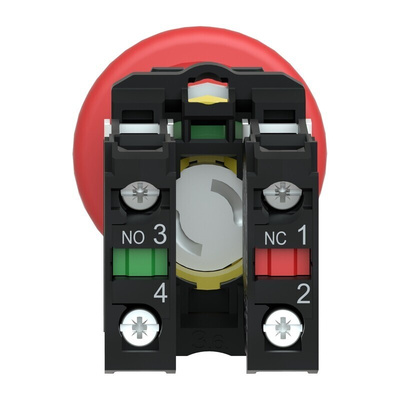

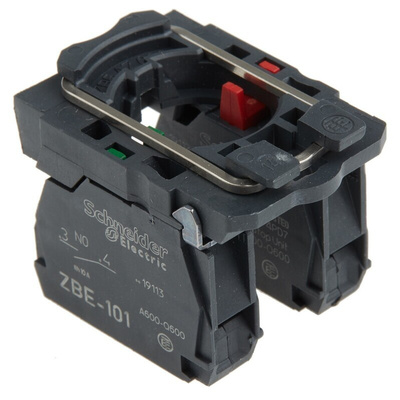

• 1 NO + 1 NC contact configuration


• Turn-to-release reset functionality, easily operated by different levels of expertise

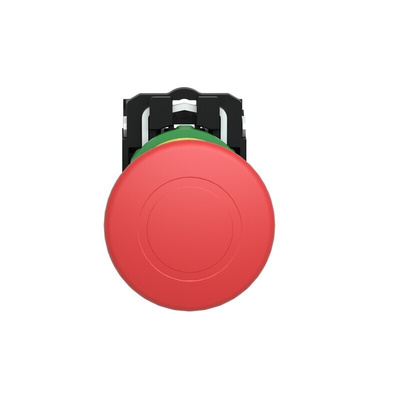

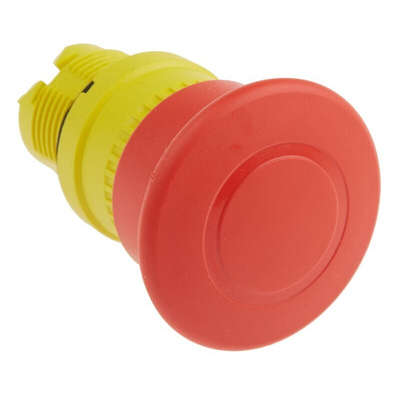

• Red "mushroom" styled head, prominent in most environments to signal the safety cut off point for machines


• Compact in nature, perfect for environments that require space, easy for mounting


• Mechanical durability of approximately 300,000 cycles provides you with the reassurance of emergency cut off when required


• Conforms to the following standards & protection degrees:


• - High protection ratings include: IP67, IP66, IP69K & IP69 (perfect for environments with dust, water or chemical interference).


• - NEMA 13, 4X (providing further protection in tough environments with a lot of dust, water or chemical interference)


• - Over-voltage category Class 2, conforming to IEC 60536


• - Highly versatile in extreme temperatures, operating at -40 to 70°C


• Vibration & shock resistance as standard, tough and durable outer body material with tough plastics on both the bezel and fixing collar means you can rely on this push button switch in difficult scenarios that require immediate stop without interruption


• Short circuit protection via a 10 A cartridge fuse


• Schneider Green Premium product as standard across the XB6 Emergency Stop Button range


• 18-month manufacturer warranty with Schneider

Applications

• Machine, chemical & Marine applications (particularly with water/chemical involvement)


• Service sectors such as restaurants, kitchens, car washes and more

Schneider Electric Emergency Stop Push Button, 600V AC Supply Voltage, 50N Operating Force - Harmony XB5 Series - XB5AT845

To have safety at your fingertips, pick this emergency stop push button from Schneider Electric. It immediately cuts off operations if there's a fault, helping to prevent injury and damage. Thanks to its bright red colour, the unit's a cinch to locate in busy settings. As it's made from rugged plastic, it shrugs off chemical damage and impact. Ratings up to IP69K indicate the button is a dust-tight option that withstands hot, high-pressure water jets. This means it works a treat in harsh environments and washdown areas.

Features & Benefits

• Shock resistance helps prevent accidental disconnections and downtime
• Works reliably in demanding temperatures between -40°C and +70°C
• 22mm cutout diameter makes it widely compatible with standard panels

Applications

• Retail centres
• Warehouses
• Automated industrial processes
• Access controls
• Medical imaging systems

How big is this emergency stop push button?

It measures 40 (W) x 43 (H) x 82mm (D), so it takes up little space on your panel.

What's the lifespan of this product?

It has a service life of 300,000 mechanical cycles, so you can count on long-lasting durability.
