XB5AVB3, Schneider Electric, Harmony XB5, Panel Mount Green Universal LED Pilot Light, 22mm Cutout, IP66, IP67, IP69(IP69K),

Schneider Electric Harmony XB5 LED Pilot Light Series

Providing functions to machines and panels, Schneider Electric combines performance with attractive design in the XB5 22 mm cut out pilot light series. Reinforced with flushed mounting kits, this series is quick and simple to install. Modular design means these lights are adaptable and flexible even in the most demanding environment. Harmony XB5 light series also offers a wide variety of solutions, materials, LED colour, connection and fixings as well as accessories to customise panels. Connection types available include screw clamp, faston connector, spring terminal and printed circuit board.

Each LED pilot light has a 22 mm mounting diameter, they also provide a solution for industrial applications where a high resistance to chemical agents is needed, including a double electrical insulation. XB5 pilot lights feature a double insulated bezel, they are complete units with integral LED.

Features and Benefits:

• -40°C –to 70°C operating temperature
• Wide choice of contact blocks
• High performance in demanding environments
• Flexibility and Adaptability
• Quick and simple installation

Protection ratings & Safety features:

• Conformity with IEC, UL, CSA, standards
• CE marking
• IP65, NEMA 4 dust and damp proofing
• Low load electrical contact
• Insulation displacement connector

Applications - The XB5 series can be used for general purpose, Building and Infrastructure and Industry application, other applications include:
• Machine and control panel
• Chemical industry
• Food and beverage
• Automotive
• Papermill
• Marine application
• Car washes

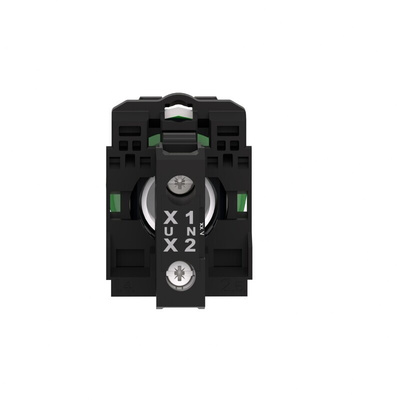

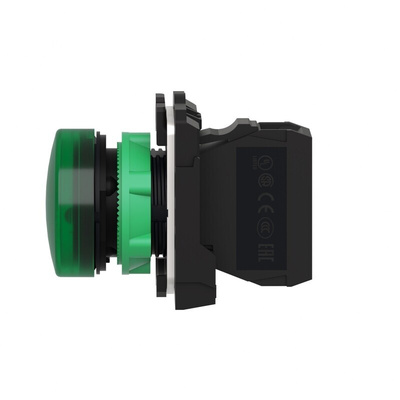

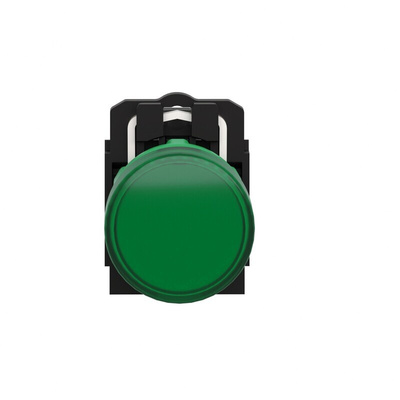

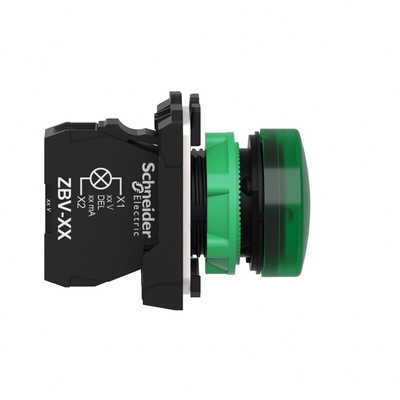

Schneider Electric Pilot Light, Integrated LED, Plastic Bezel and Collar - Harmony XB5 Series - XB5AVB3

Need a way to indicate when a machine or process is running? Choose this pilot light from Schneider Electric. It comes with a light block, fixing collar and lens, so you can use it straight away. The LED emits a steady green light that shows when equipment is on and working. This unit clamps onto cutouts with a thickness between 1 and 6mm, so it fits on standard panels and enclosures. Thanks to the modular design with clip-in and screw fittings, this pilot light is a breeze to install and adapt.

Features & Benefits

• Mounting diameter of 22mm means it fits into pre-made panel cutouts
• Operates at temperatures from -40°C to +70°C, to handle harsh industrial conditions
• IP67 rating means it's dust-tight and resistant to temporary immersion in water
• Rugged plastic construction withstands corrosion, so it's ideal for use in humid areas

Applications

• Factory automation
• Plant machinery
• Lifts and hoists
• Entry systems

What lifespan will I get from this pilot light?

You can expect a long service life of 100,000 hours when it's used at the rated voltage of 24V AC/DC in +25°C temperatures.
