XB5AVB4, Schneider Electric, Harmony XB5, Panel Mount Red Universal LED Pilot Light, 22mm Cutout, IP66, IP67, IP69(IP69K),

Schneider Electric Harmony XB5 LED Pilot Light Series

Providing functions to machines and panels, Schneider Electric combines performance with attractive design in the XB5 22 mm cut out pilot light series. Reinforced with flushed mounting kits, this series is quick and simple to install. Modular design means these lights are adaptable and flexible even in the most demanding environment. Harmony XB5 light series also offers a wide variety of solutions, materials, LED colour, connection and fixings as well as accessories to customise panels. Connection types available include screw clamp, faston connector, spring terminal and printed circuit board.

Each LED pilot light has a 22 mm mounting diameter, they also provide a solution for industrial applications where a high resistance to chemical agents is needed, including a double electrical insulation. XB5 pilot lights feature a double insulated bezel, they are complete units with integral LED.

Features and Benefits:

• -40°C –to 70°C operating temperature
• Wide choice of contact blocks
• High performance in demanding environments
• Flexibility and Adaptability
• Quick and simple installation

Protection ratings & Safety features:

• Conformity with IEC, UL, CSA, standards
• CE marking
• IP65, NEMA 4 dust and damp proofing
• Low load electrical contact
• Insulation displacement connector

Applications - The XB5 series can be used for general purpose, Building and Infrastructure and Industry application, other applications include:
• Machine and control panel
• Chemical industry
• Food and beverage
• Automotive
• Papermill
• Marine application
• Car washes

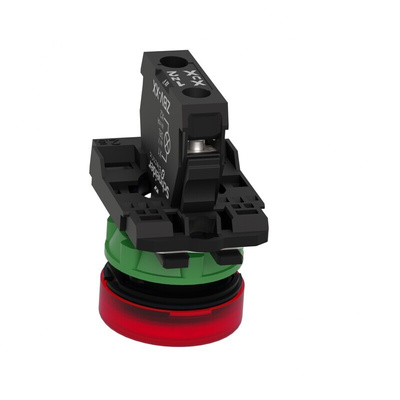

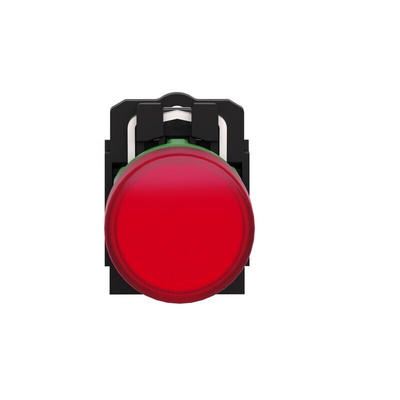

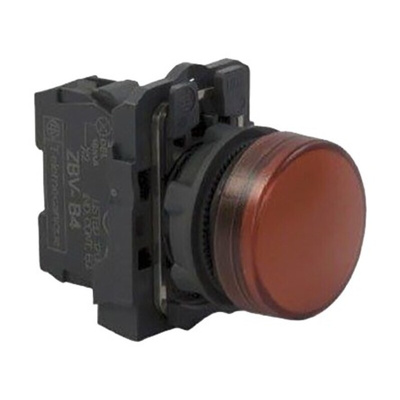

Schneider Electric Pilot Light, Complete Assembly, IK05 Rating - Harmony XB5 Series - XB5AVB4

Keep an eye on your industrial process with this round pilot light from Schneider Electric. It provides steady illumination with its built-in red LED bulb, so you can visually verify whether a system is on or off. Thanks to its operating temperature range of -40°C to +70°C, the component stands up to challenging conditions. An IP69K rating assures you it's completely dust-tight and fully protected against high-heat, high-pressure water jets from any direction. As the assembly is supplied complete, you can install it straight away without the need for supporting parts.

Features & Benefits

• Low current consumption of 18mA, so it's energy-efficient
• Rated impulse withstand voltage of 4kV for protection from electrical surges
• Light weight of 35.3g to avoid putting excess strain on your setup
• Cutout diameter of 22mm for installation in standard panels
• Versatile, as it's compatible with AC and DC power sources at 24V

Applications

• Vehicle dashboards
• Woodworking equipment
• Shop fittings

What service life will I get from this pilot light?

It operates for 100,000 hours at +25°C when supplied with its rated voltage, so you get a long and reliable service life.
