XCMD2102C12, Telemecanique Sensors OsiSense XC Series Roller Plunger Limit Switch, NO/NC, IP66, IP67, IP68, DP, Zinc Alloy Housing,

Telemecanique Limit Switches

Introducing Telemecanique XCMD range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before.

How does a limit switch work?

The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break the electrical connection.

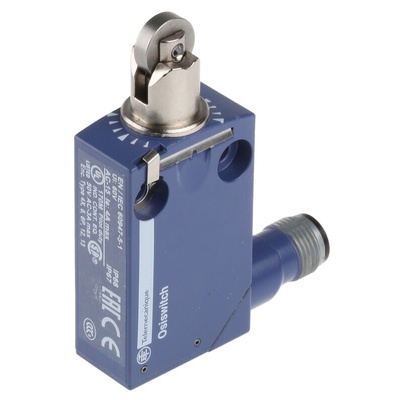

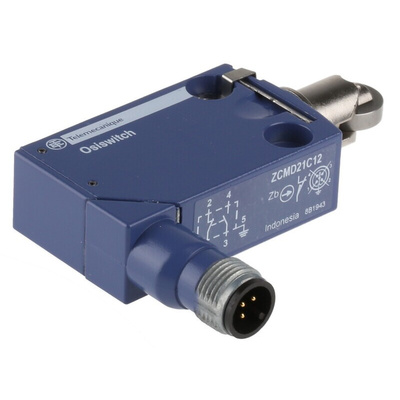

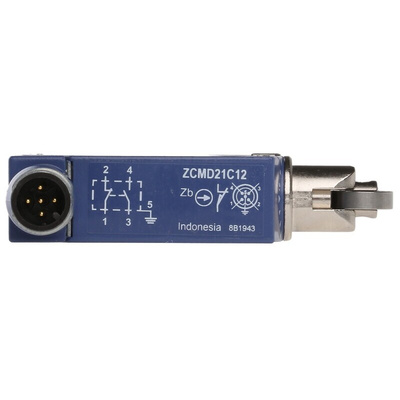

Telemecanique XCMD2102C12 Limit Switch

• Forms part of the OsiSense XC range of products
• Plug in body type
• Features a plunger head
• Comprised of a hardwearing plastic material
• The operator type is a spring return roller plunger metal
• 1NC - 1 NO contact types
• 2 poles
• Snap-action contact operation
• Minimum force for tripping is 7 N
• Dimensions – W30mm x H50mm x D16mm
