XCSB501, Telemecanique Sensors XCSB Safety Interlock Switch, 2NO/1NC, Keyed, Zinc Alloy, Выключатель

XCSB Safety Interlock Switch.

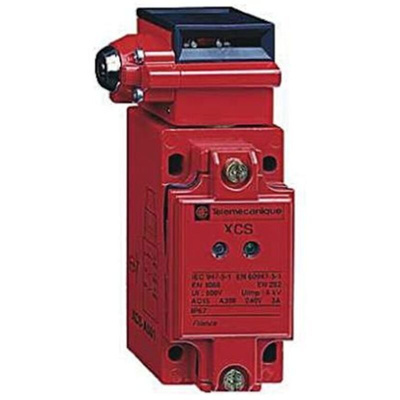

The Schneider XCSB series is an industrial safety interlock switch with manual locking and unlocking of the actuator via a pushbutton. The XCSB offers protection of operators by stopping the machine when the actuator (attached to the machine guard) is withdrawn from the head of the safety switch. It has a red metal housing with a key operated turret head and one tapped M20x1.5 cable entry.

Features.

• 3 safety contacts, slow-break, break before make


• Manual unlocking via pushbutton


• Metal body


• Drive head can be moved 90° in each direction


• 8 possibilities for inserting the actuating key


• 20 N minimum force for positive opening


• IP67 protection in accordance with EN/IEC 60529 and EN/IEC 60947-5-1


• 4 different actuator keys available, please order separately

Note

With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508.

Standards

IEC 60947, EN 292, EN 60204, EN 1088.

Approvals

UL, CSA.
