XCSE7511, Telemecanique Sensors XCS-B Series Solenoid Interlock Switch, Power to Lock, 24V ac/dc, Actuator Included

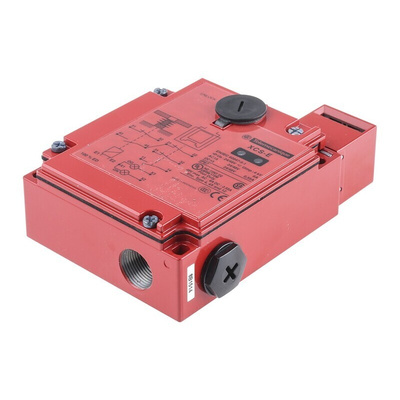

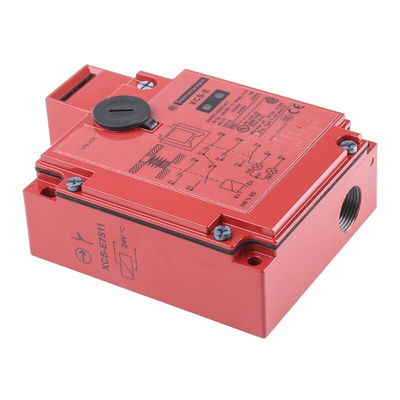

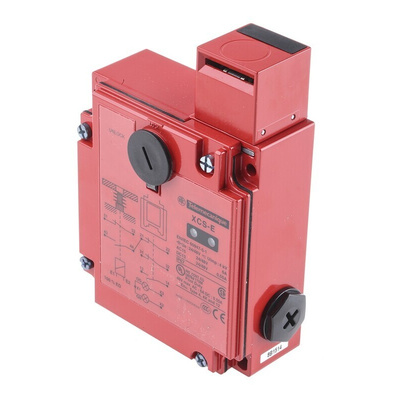

Telemecanique Sensors XCSE Solenoid Interlock Safety Switch.

From Telemecanique Sensors this is the XCSE series of safety solenoid interlock switches providing you with the solution when running machinery and a guard or door stays closed. Interlock switches protect machine operators by stopping the equipment when the door or guard opens by withdrawing the actuator attached from the switch head. The XCSE solenoid interlock switch is ideal for use with heavy duty industrial machines with a low rundown time.

The Telemecanique Sensors XCSE series solenoid interlock switch has a power supply voltage rating of 24 V, and has NC / NO safety slow break contacts. The switch is made of Zamak housing material and is interlocking, locking and unlocking by solenoid.

Features and Benefits XCSE7511 Telemecanique XCS Safety Switch.

• XCSE Safety switch.


• XCS Range of safety switches.


• Rectangular design.


• Zamak head and body material.


• Key operated turret head.


• Contacts 2 NC + 1 NO (type).


• Solenoid Contacts 1 NC + 1 NO (slow break – break before make).


• 2 Cable entries tapped for Pg 13.5.


• Cable outer diameter 9 – 12 mm.


• 3 Poles.


• Locking With interlocking, locking by solenoid.


• Terminal clamping.


• (Us) Rated supply voltage 24 V.


• 2 x LED (green or orange) guard open / guard closed and locked.


• Circuit voltage 24 - 48 V.


• NC contact positive opening.


• AC/DC supply voltage.


• Mechanical life 1000000 cycles.


• Weight 1.14 Kg.


• Operating temperature is between -25°C and 40°C

Safety Level.

• Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ ISO 13849-1. Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508.

Certification.

• UL, CSA.

Standards.

• CSA C22.2 No 14, UL 508, EN/ISO 12100, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1.

Note

Actuators not included, must be ordered separately.
