XE2SP4151, Schneider Electric Foot Switch Contact Block for Foot Switch, Контактный блок

Schneider Electric Footswitches - XPE Range

A wide range of metal housed footswitches brought to you from Schneider Electric, ensuring you start on the right foot! They are available with or without a protective guard cover. The guarded cover types are strongly recommended in high-risk areas where accidental starting of a machine, either by human action or falling objects could occur.

• Large surface area of pedal assures stability of foot and provides operator comfort
• High and wide protective cover accommodates large sizes and safety boots
• Can be fixed to the floor or on a support for improved stability
• Approvals - U/CSA
• Schneider Electrics XPE range of industrial footswitches are robust
• A great feature of this range of foot switches is that they allow the operator greater freedom of movement
• Available with or without trigger mechanism in 1 or 2 step configurations
• The trigger mechanism types of footswitch enable locking of the pedal in rest position, positive action is required before the pedal can be depressed
• Footswitches within the XPE range that feature 2-step contact operation are ideal for applications involving 2-speed machines
• The first step (6mm travel) operates one set of NC + NO contacts before the second step operates the other NC + NO contacts during full actuator travel (12mm)

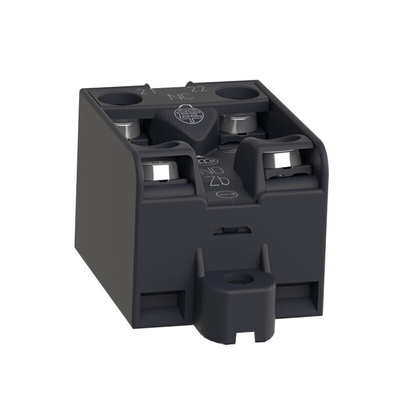

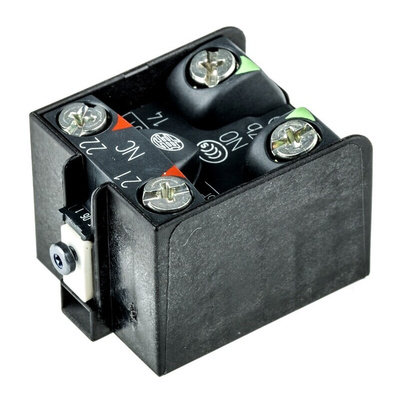

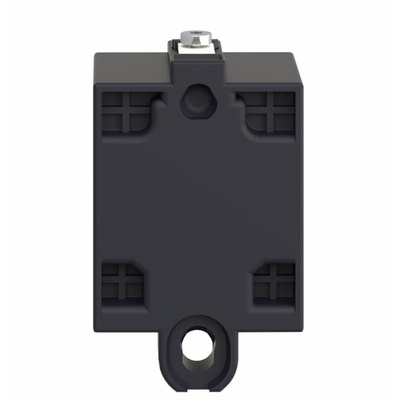

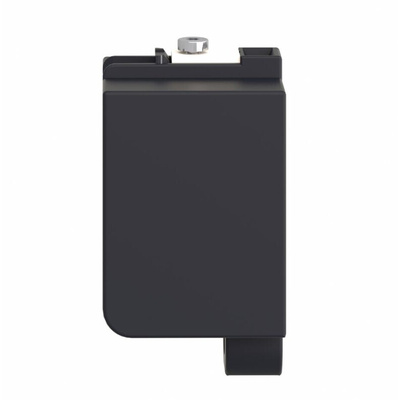

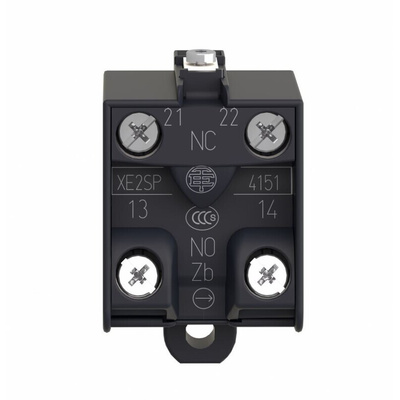

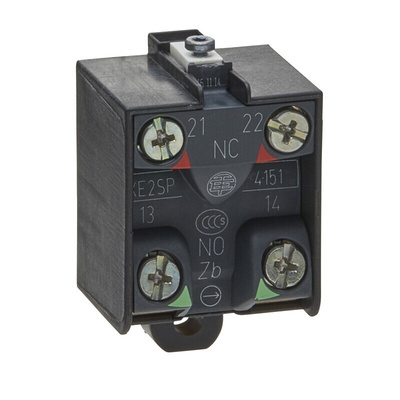

Schneider Electric Foot Switch Contact Block, Replacement Accessory, Snap-Action Type - Harmony XPE Series - XE2SP4151

To keep your pedal-powered switches trucking along, trust this foot switch contact block from Schneider Electric. It's designed to make or break an electrical circuit when installed with a compatible switching device. This lets you stop or start connected machinery, including safety devices, in a jiffy. The block measures a standard 25 (H) x 30 (W) x 40mm (L) and only weighs 20g, so it fits neatly into your setup and keeps it free from excess load.

Features & Benefits

• Maximum operating humidity of 95% RH for use in areas prone to high moisture levels
• Screw connection allows for a speedy setup using a slotted or Phillips screwdriver
• Broad operating temperature range of -20°C to +60°C, so it holds its own in harsh environments

Applications

• Industrial automation and control
• Assembly lines
• Machine tooling
• Pick and pack conveyors

Can I use this contact block to control equipment with two operating speeds?

Yes. This component is compatible with two-step foot switches, so you can use it with equipment that runs at two operating speeds.
