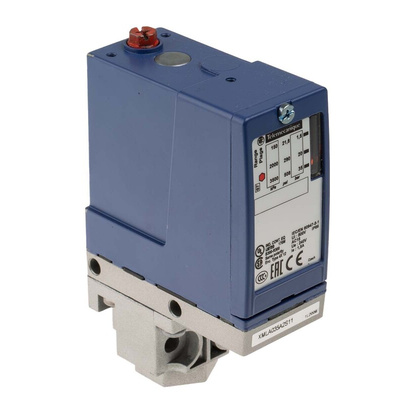

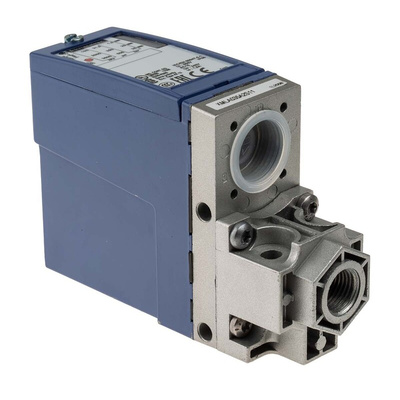

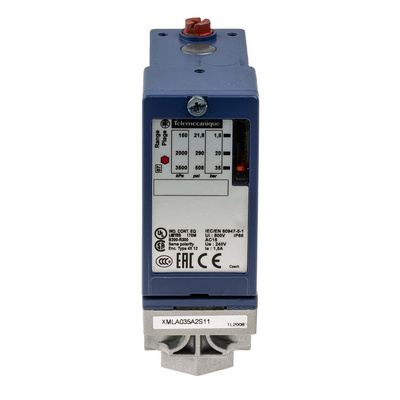

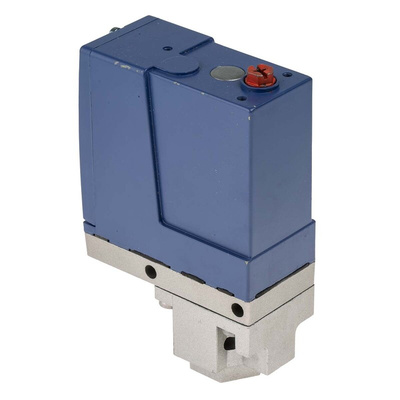

OsiSense XMLA Pressure Switches
Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold.
Fixed differential
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4" NPT
Conduit connection: 1/2" NPT
Note
Pressure quoted is 'per cycle' and (occasional)
Техническая спецификация
Equivalent model references of XML pressure and vacuum switches for previous range XM2-JM, XMJ and XMG pressure and vacuum switches Data SheetElectromechanical pressure and vacuum switches Nautilus For control circuits, type XML Dimensions Data SheetXMLA035A2S11 DatasheetOsiSense Sensing GuideProduct Environmental Profile
