LC3D12AP7, Schneider Electric Star Delta Starter, Star Delta, 11 kW, 440 V ac, IP20, Пускатель

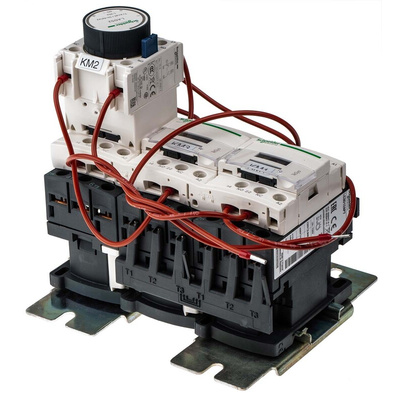

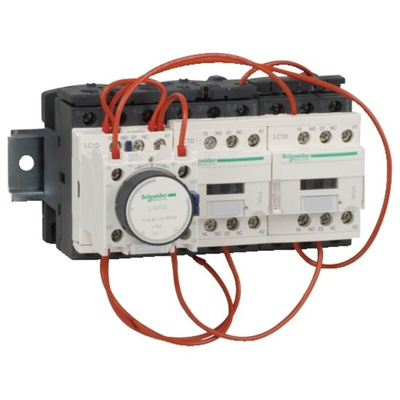

Schneider Electric Star Delta Starter, 3 Poles, AC-3 Utilisation Category - TeSys Series - LC3D12AP7

Safely control three-phase squirrel-cage motors with this star delta starter from Schneider Electric's TeSys range. It has two stator windings – a star-connected stator winding to start the motor in the no-load condition and a delta-connected winding to run the motor after a certain time or at a certain speed. With a rating of 440V AC, this unit is suitable for use in low-voltage systems. Thermoplastic housing provides impact protection and it's also insulating, so prevents electric shocks and supports safe operation.

Features & Benefits

• Power rating of 11kW for heavy-duty applications
• Light weight of 1.53kg for easy handing during installation
• Compact dimensions of 124 (length) x 143 (width) x 139mm (depth) for installation in setups with limited space
• Integrated mechanical interlock to prevent arcing for enhanced safety
• Comes with a mounting plate for quick and simple installation

Applications

• Bucket lifts
• Air-conditioning units
• Industrial conveyors

What's the difference between a DOL starter and a star delta starter?

The major difference between a DOL starter and a star delta starter is that the DOL starter uses full voltage to start the motor, while a star delta starter switches the motor with a reduced voltage.
