XD4PA22, Schneider Electric 2-Axis Joystick Switch Lever, Spring Return, IP66 600V, Джойстик-переключатель

Schneider Electric Slow-Break Joystick Switch, 220mA, 600V - Harmony XD4 Series - XD4PA22

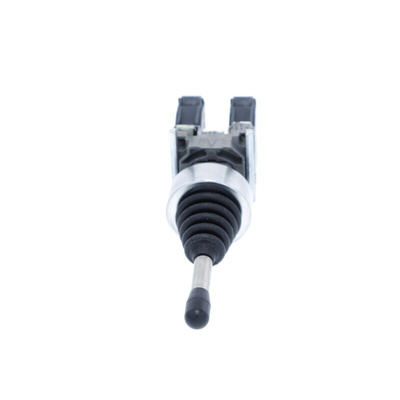

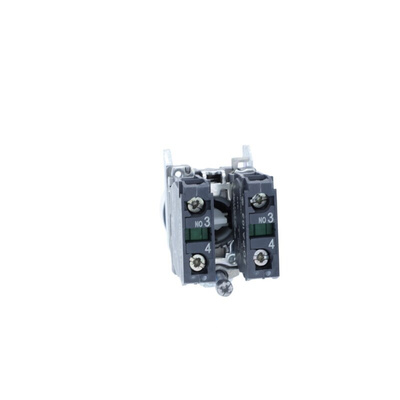

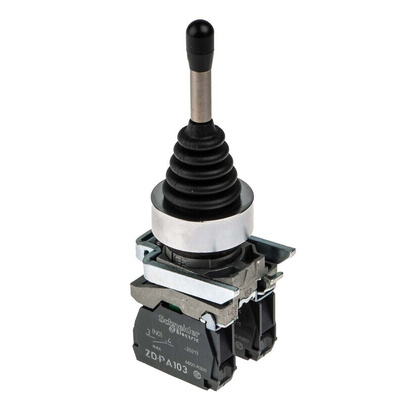

This Schneider Electric joystick switch moves in two directions, so you can use it for precise object handling. The unit comes fitted with a contact block and a robust Zamak (zinc alloy) fixing collar for secure installation. With a standard diameter of 22mm, it will fit onto most control decks. You can link it to a power source through the screw clamp terminals – these provide a reliable connection and offer the mechanical strength needed to withstand vibration.

Features & Benefits

• IP66 (ingress protection) rating indicates full protection from dust and water jets
• 54mm operating shaft for easy reach and handling
• Chromium-plated metal is highly resistant to wear and tear and lasts longer
• Broad operating temperature range of -25°C to +70°C for use in harsh conditions

Applications

• Industrial cranes
• Factories
• Assembly plants
• Automotive industry

How durable is this joystick switch?

This switch delivers 1,000,000 mechanical life cycles, so can be relied on for a long service life.

How many positions does this joystick switch have?

This switch has three positions. One operating position is its rest state. The other two go in different directions and determine the movement of the switch.
