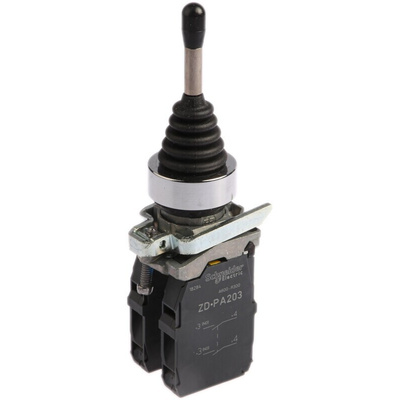

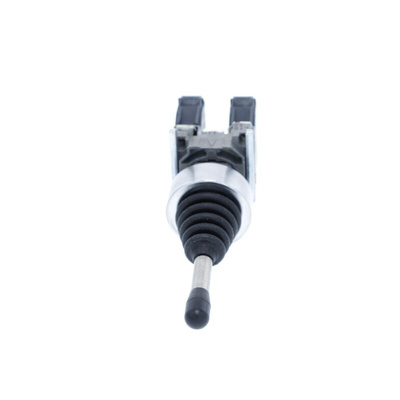

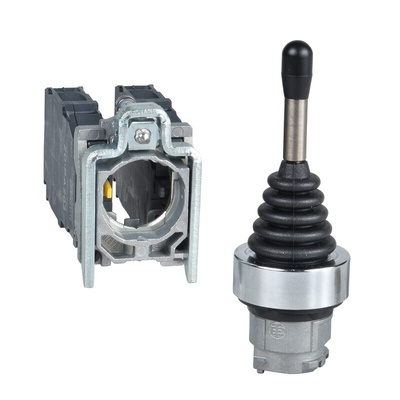

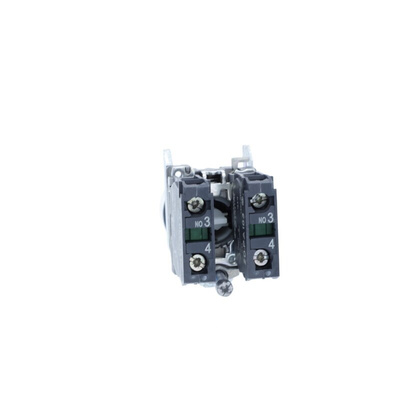

XD4PA24, Schneider Electric, 4 Way Joystick Switch Lever, Spring Return, IP66 Rated, 600V, Джойстик-переключатель

Schneider Electric | Harmony XD4 Series | Joystick Switches

Integral to industrial and commercial control industries alike, the Joystick Switch helps you position machinery where you need it. Schneider Electric brings you the robust Harmony XD4 series of Joystick Switch, able to continually control devices reliably even in adverse conditions.

Features and benefits:

• Light-weight, compact in size, the XD4 Joystick can operate in areas with limited space.

• Compatible with Philips / Pozidriv style screwdrivers

• Silver alloy (Ag/Ni) material used on the contacts.

• Chromium-plated bezel with a Zamak based fixing collar.

• 1 NO contact configuration.

• 2 or 4 (Dual-axis, Quad-Axis) position joystick controller with 54 mm shaft.

• 1,000,000 mechanical & electrical durability for increased longevity, further reducing your long-term costs.

• Lever handle type.

• Spring return joystick operation.

• 18-month manufacturer warranty.

Protection ratings & Safety features:

• 10 A cartridge fuse (type gG conforming to EN/IEC 60947-5-1) for greater short-circuit protection.

• IP 66 rated (total protection against dust with a high degree of water protection but not suitable for total submersion).

• NEMA rated (further protection against dirt, dust, and water, see datasheet for full spec).

• Vibration resistance up to 5 gn & 50 gn of shock resistance.

• Overvoltage category: 1 (conforms to IEC 60536).

• Ambient operating temperature of -25°C to 70°C, suitable in a wide variety of environments.

Applications:

• Can be easily integrated into various control panels.

• Maritime sectors.

• Medical sectors.

• Heavy-duty machinery / Industrial controls.

Datasheet

Harmony Control and Signaling Guide
