Schneider Electric Push Button Pendant Stations

Created and designed for predominantly crane applications, Schneider Electrics push-button pendant station provides a covering case for the internal push button. This unit is a simple yet effective mechanical switch which is commonly used to control one function within a machine or device.

Common Applications of a Push Button Pendants Station

Due to the nature of the component and its capability of controlling a certain piece of machinery from a distance, users will commonly find push button pendant stations being used within an industrial environment for machines such as cranes that hoist overhead and similar types of machinery.

• Pre-assembled, ready to go
• Double insulated
• Commonly used for single speed motor applications
• Mechanically interlocked between pairs

Schneider Electric Push Button Pendant Station - XACA4713

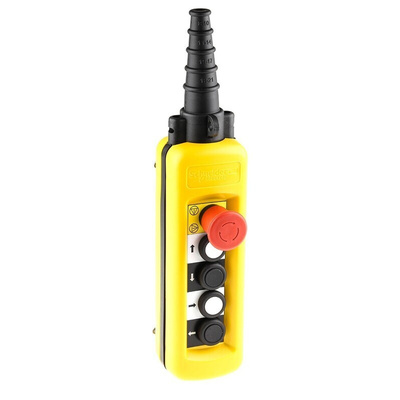

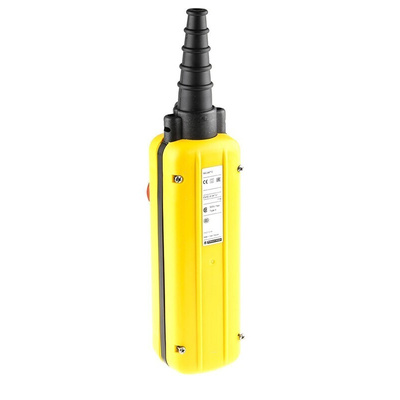

Forming part of Schneider Electrics Harmony XAC range, this pendant features four push-buttons and one emergency stop button.

Features & Benefits

• The control button type of the buttons are - third pushbutton 1 NO right - slow, stop pushbutton Ø 40 mm 1 NC - latching, second pushbutton 1 NO lower -slow, fourth pushbutton 1 NO left - slow and first pushbutton 1 NO raise - slow


• With mechanical interlocking


• Aesthetically pleasing, finished with bright yellow colour, making it easy to locate


• Mechanically durable up to 1000000 cycles


• The cable entry has a rubber sleeve with stepped entry, the cable outer diameter is 0.31...1.02 in (8...26 mm)


• This pendant control station has a conventional enclosed thermal current of 10A


• The unit features an ingress protection rating of IP65, this means that the pendant control station is rated as dust tight and is protected against water projected from a nozzle


• Shock-resistant of 100gn conforming to EIC 60068-2-27


• Features a rated insulation voltage of 600V (degree of pollution:3) which conforms to IEC 60947-1


• The rated impulse withstand voltage is 6 kV which conforms to IEC 60947-1
