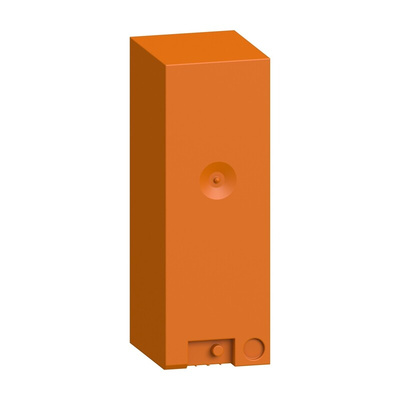

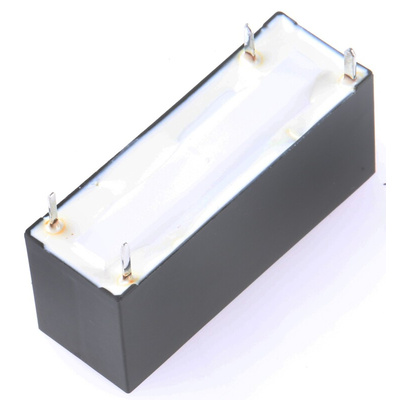

ABR7S21, Schneider Electric Surface Mount Power Relay, 24V dc Coil, 1A Switching Current, DPDT

Telefast ABE7 relay output interfaces.

The Telefast 2 pre-wiring systems comprise modules that connect to the PLC with a multicore cable fitted with HE10 connectors.
Sockets for solid state and/or electromechanical output relays, pull-out type.
Sockets not fitted with relays
They simplify wiring operations and thus reduce the amount of errors.
Sensor connection by screw terminals.
Assembly on DIN rail.
Cables for PLCs to be ordered separately.

Schneider Electric Power Relay, 1NO Contact Configuration, Plug-In Type - ABE7 Series - ABR7S21

Switch up your automated processes with this power relay from Schneider Electric. Thanks to its through-hole terminals, it plugs fuss-free into an ABE7 series sub-base. This gives your Advantys Telefast system a relay output without the need for additional wiring, making it quick and easy to make adaptations to your industrial network. The relay has a 1NO configuration, enabling it to switch circuits on and off. A maximum switching voltage of 130V DC/250V AC means it suits many automation applications, including motor control.

Features & Benefits

• Free from PVC, mercury and toxic heavy metals to increase safety and sustainability
• Width of 10mm keeps it compact
• Ultra-light weight of 8g for minimal strain on your equipment

Applications

• Data centres
• Automated machinery
• Food and beverage production
• Water treatment plants

What's the benefit of an electromechanical relay?

An electromechanical relay like this one is electrically operated with a magnetic coil and moving contacts. This ensures reliable switching over a long period. As the relay's thoroughly tested, you can be confident it has a mechanical durability of 20 million cycles and an electrical lifespan of 500,000 cycles.

Schneider Electric Telefast 2 Pre-Wired System

The Telefast 2 system of pre-cabling is composed of modules connected to the PLC by means of a multicore cable equipped with HE 10 connectors . The Telefast 2 interfaces make it possible to simplify the operation of wiring and thus limiting errors.

Advantys Telefast ABE 7 pre-wired system Data Sheet

Datasheet

Catalogue - Modicon

Instruction Sheet - ABR7S21
