GMR7590-21P-1BSN, Glenair GMR7590 21 Way Right Angle Through Hole D-sub Connector Plug, 1.91mm Pitch, Разъем

Metal Shells 90° PCB

Note

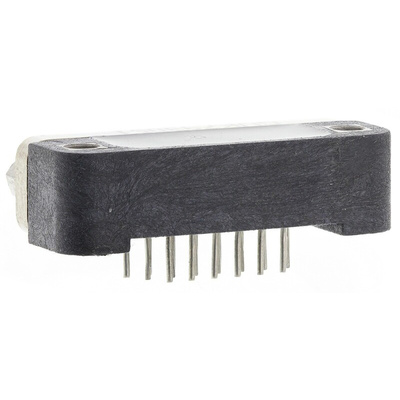

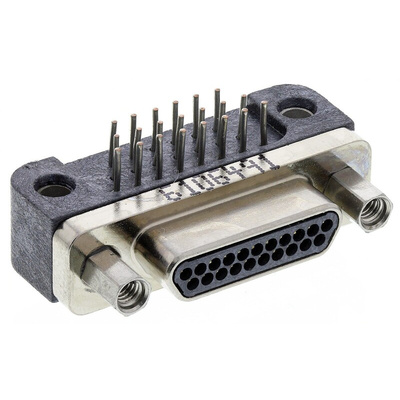

Illustrations show a sample of a plug and a socket, both 90° versions.

Micro D with Reduced 0.075 in. PCB Pitch

For higher densities of circuit tracks and reduced termination grid patterns. The 0.075 inch pitch Micro D connector significantly reduces connector size and weight. They share the same high performance components used in the rest of the Mil-PRF-83513 approved Micro D range and mate with the corresponding Glenair Micro D Metal flying lead or solder bucket connector.

High performance, gold plated twist pin contact system
3 amp contact rating
High density 0.05 inch contact pitch
RoHS compliant
0.075 inch termination grid
Nominally 23-43% reduction in pcb space required
Nominally 12-20% weight reduction
0.020 inch diameter copper termination tails
Vertical and horizontal mounting
Interfacial sealing gaskets fitted as standard
Nickel plated, precision machined shell housing with trapezoidal polarisation
Jackposts supplied installed.
