0 362 52, Legrand Marina Series Fibreglass Reinforced Polyester Wall Box, IP66, 500 mm x 400 mm x 206mm, Настенный шкаф

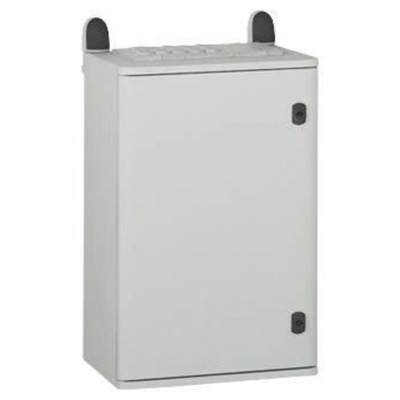

Legrand IP66 Marina Enclosures

The marina range of wall mounting enclosures are made from an insulating, slow burning and self-extinguishing composite. The polyester and glass fibre materials makes them ideal for using in all corrosive environments.
The marina range can be fixed to a wall by using threaded rods, fix to a post or use a stand to fix to the floor.

Features and Benefits

• Self-extinguishing to 960 °C in compliance with NFC20455
• One piece body
• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water of similar force to heavy seas
• External mechanical impact resistance of IK10 (20 joules) meaning the wall box gives protection against a 5 kg object dropped from approximately 40 cm
• Excellent resistance to fuels, oils and lubricants
• Direct fixing of equipment at bottom of cabinet (screws supplied)

0 362 52 Marina Enclosure

Features

• Polyurethane seal
• Top and bottom protective flange
• Stainless steel hinges
• 2 double bar locks
• The cabinet door is reversible and opens to 180°

What are the external dimensions?

The 0 362 52 enclosure has external dimensions of 206 x 400 x 500 mm.

Can the wall mounted box be used outside?

The 0 362 52 has an Ingress rating of IP66 so can be used inside or outside.
