Z 136.203, Baumer Draw Wire Encoder, Кабельная сборка

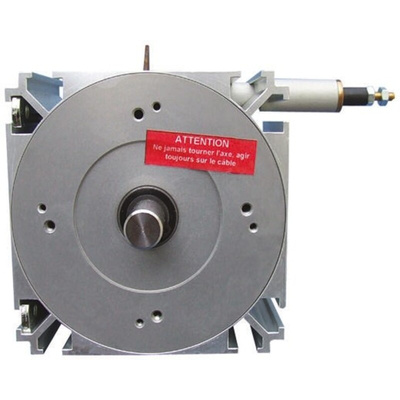

Cable mechanisms for Z136 series encoders

Cable mechanisms consisting of a very flexible calibrated wire on a reel drum.
For measuring linear movement when used with an incremental or absolute encoder.
Measurement length: 3 or 5 metres.
2 models available:

3-metre model; Z 136.203.

For Ø 58 mm encoders, hollow shaft with Ø12 mm bore and fitted with an anti-rotation spring.

5-metre model; Z 136.305.

For Ø 58 mm encoders, with Ø 6 mm protruding shaft and synchro flange. The flexible coupling is supplied with the cable mechanism.

Kubler

Push pull interface with inverted signals
Short circuit protection
Age and temperature compensation
