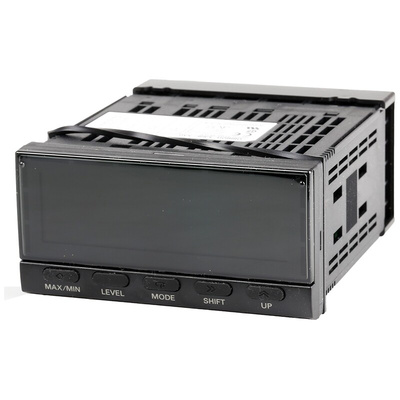

K3HB-XAD 100/240VAC, Omron LED Digital Panel Multi-Function Meter for Current, Voltage, 45mm x 92mm, Многофункциональный измеритель

K3HB-X Process Panel Meter

1/8DIN (48x96mm) fascia, 100/240Vac supply. Colour change display to indicate process status and configurable bar graph for display of magnitude of input. Input ranges are scaleable linear AC current, DC current or DC voltage to cover all standard linear scales.

3 models offer standard linear scaleable inputs

K3HB-XAD – DC current, +/-199.99mA / 4-20mA
K3HB-XVD – DC voltage, +/-199.99V / 1 to 5V
K3HB-XAA - AC current, 0 to 10A
Colour change display and output indications give process status
Separate option cards available tailoring meter to the application of your choice (typical stock no. 611-7637)

Omron K3HB Series

This new range of Process Panel Meters replaces the K3N Series. K3HB series consists of process, temperature, weighing and linear sensor indicators. These indicators with analogue inputs or pulse inputs feature a clear and easy-to-use colour-change display and all have IP66 housing. Extra functionality can be added using option boards (3 maximum).

Dimensions: 101.2 x 112 x 48 mm. Panel cut-out: 92 x 45 mm
