Omron K3HB-XVD 100/240VAC , LCD Digital Panel Multi-Function Meter for Current, Voltage, 45mm x 92mm, Многофункциональный измеритель

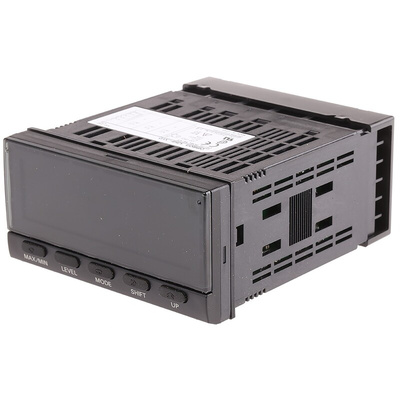

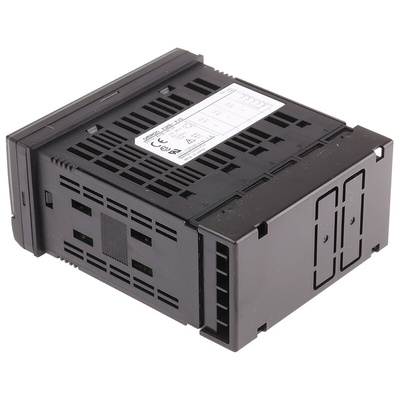

Omron Process Panel Meter

The Omron process panel meter is water and dustproof indicator with a highly visible LCD and 2-colour LEDs. It has an NPN and a PNP contact or a voltage rotary pulse input. The device consists of scaling, auto-zero time and start-up compensation time functions. The finger protective cover guards against electric shock. It is used to measure the current and voltage.
Omron K3HB Series
This new range of Process Panel Meters replaces the K3N Series. K3HB series consists of process, temperature, weighing and linear sensor indicators. These indicators with analogue inputs or pulse inputs feature a clear and easy-to-use colour-change display and all have IP66 housing. Extra functionality can be added using option boards (3 maximum).

Features and Benefits

Easy confirmation of maximum/minimum display
Short 80mm depth
2 relay contact outputs (SPST-NO)
Supply voltage rating is 100VAC to 240VAC
7-segment 5-digital LCD display, Character height is 14.2mm
Average processing function suppresses flicker
Front-panel key operation for easy setting
Cut-out height of 48mm and width of 96mm
Maximum display digit range is −19999 to 99999
Operating temperature ranges between -10°C and 55°C

Certifications

NEMA4X
IP20 rated (Rear case)
IP66 rated (Front panel)
cULus approved
CE certified
cURus certified
