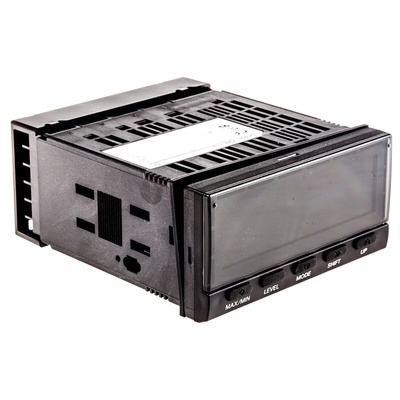

K3HB-CNB 100/240VAC, Omron K3HB Counter, 5 Digit, 50kHz, 24 V ac/dc, 100 → 240 V ac, Счетчик

K3HB-C Up/down Pulse Counter Panel Meter

1/8DIN (48x96mm) fascia, 100/240Vac supply. Colour change display to indicate process status and configurable bar graph for display of magnitude of input. With a scaleable input of up to 50kHz, the K3HB-C is able to accept NPN, PNP open collector and voltage pulses of non voltage contact pulses, making it suitable for all pulse input options such as encoders, sensors and switches.

Two standard models with input speeds for up to 50 kHz
IP66 front fascia make them suitable for harsh and wash down environments
Dual colour change display for status indication and configurable bar graph
Separate option cards available tailoring meter to the application of your choice (typical stock no. 611-7637)

Omron K3HB Series

This new range of Process Panel Meters replaces the K3N Series. K3HB series consists of process, temperature, weighing and linear sensor indicators. These indicators with analogue inputs or pulse inputs feature a clear and easy-to-use colour-change display and all have IP66 housing. Extra functionality can be added using option boards (3 maximum).

Dimensions: 101.2 x 112 x 48 mm. Panel cut-out: 92 x 45 mm
