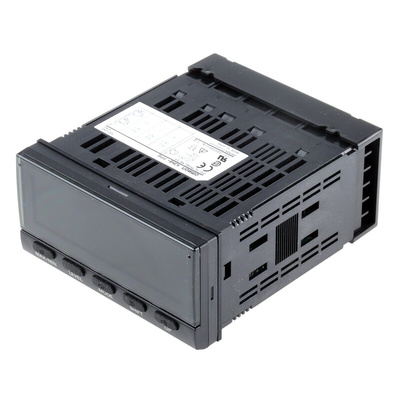

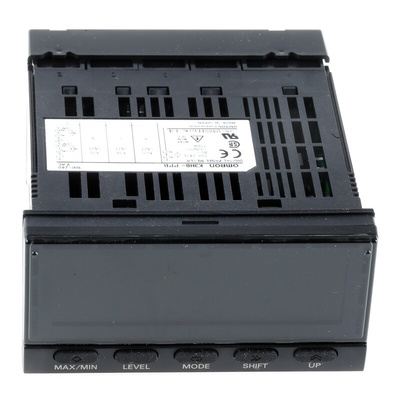

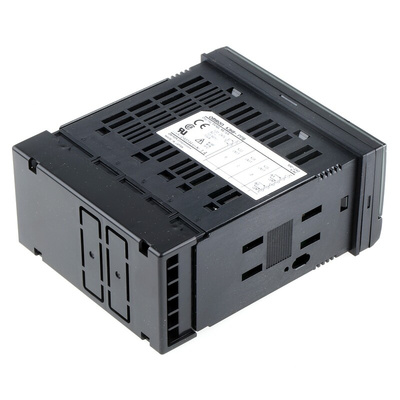

K3HB-PPB 100/240VAC, Omron Digital Voltmeter AC, LED Display ±0.08 %, Вольтметр

K3HB-P Time Interval (period) Panel Meter

With colour change display to indicate process status and configurable bar graph for display of magnitude of input. This meter has 6 operations, passing speed, cycle speed, time difference, duration, measured length, and interval speed to give versatile operation to suit the application. This type of meter includes scaleable input speed of up to 50 kHz and a wide choice of input options.

1/8DIN (48x96mm) fascia, 100/240Vac supply
Two standard models to cover all of the input options
Separate option cards available tailoring meter to the application of your choice (typical stock no. 611-7637)
Colour change display gives immediate indication of status, with configurable bar graph for magnitude
Input speeds of up to 50kHz
6 operation modes for different applications
Easy to use menu structure for quick set ups
Includes pre-scaling to manipulate input and display, to give display in actual units to avoid wrong interpretation of values

Omron K3HB Series

This new range of Process Panel Meters replaces the K3N Series. K3HB series consists of process, temperature, weighing and linear sensor indicators. These indicators with analogue inputs or pulse inputs feature a clear and easy-to-use colour-change display and all have IP66 housing. Extra functionality can be added using option boards (3 maximum).

Dimensions: 101.2 x 112 x 48 mm. Panel cut-out: 92 x 45 mm
