Omron Process Panel Meter

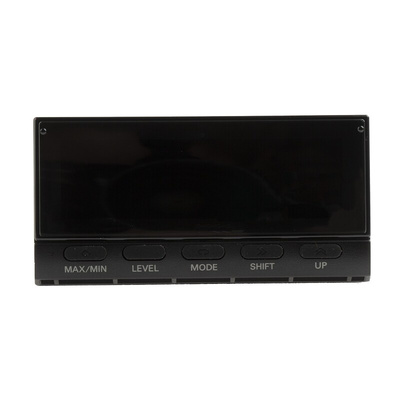

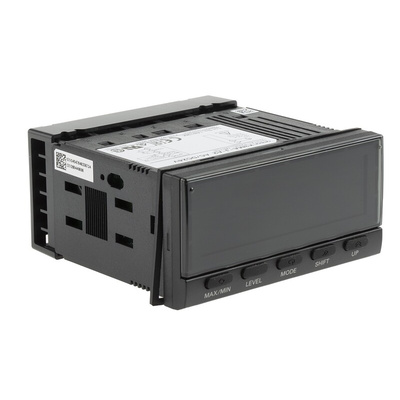

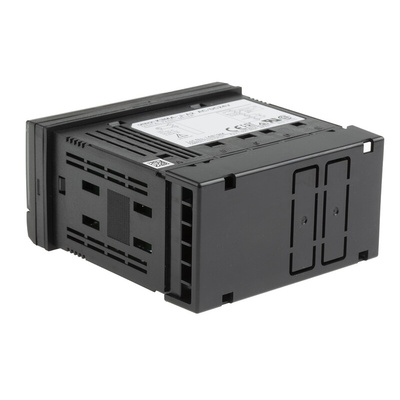

The Omron process panel meter is water and dustproof indicator with a highly visible LCD and 2-colour LEDs. It has a DC voltage/current input. The device consists of scaling, auto-zero time and start-up compensation time functions. The finger protective cover guards against electric shock. It is used to measure the current and voltage.
Features and Benefits
Input signal is DC voltage/current (0mA to 20mA, 4mA to 20mA, 0V to 5V, 1V to 5V, ±5V, ±10V)
Supply voltage rating is 24VAC/DC
Easy confirmation of maximum/minimum display
Short 80mm depth
2 relay contact outputs (SPST-NO)
7-segment 5-digital LCD display, Character height is 14.2mm
Average processing function suppresses flicker
Front-panel key operation for easy setting
Cut-out height of 45mm, width of 92mm and depth of 80mm
Maximum display digit range is −19999 to 99999
Operating temperature ranges between -10°C and 55°C
Certifications
NEMA4X
IP20 rated (Rear case)
IP66 rated (Front panel)
cULus approved
CE certified
cURus certified
