RS PRO Universal Thermocouple Connector for use with Type K Thermocouple Type K, Miniature

Miniature Thermocouple Connectors - High Temperature Plastic

Thermocouple connectors with heavy duty plastic body made from high strength thermoset plastic. Available in thermocouple types K, N or J.

Thermoset resin bodies
Polarised contacts
All types are colour coded - Brown
Operating temperature +425 °C max. (Intermittent 540 °C max.)

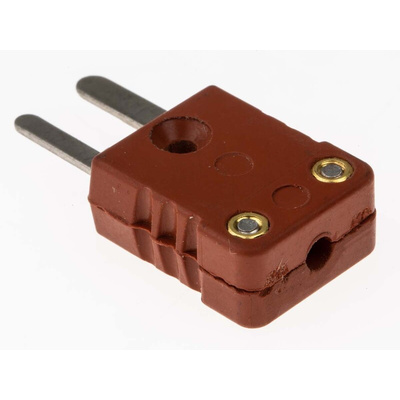

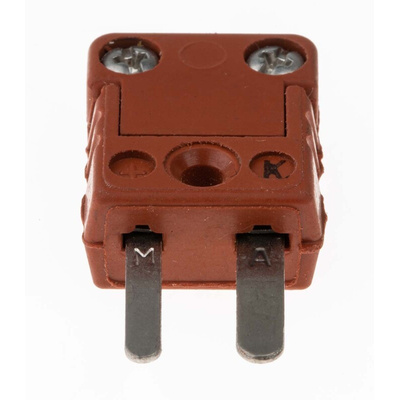

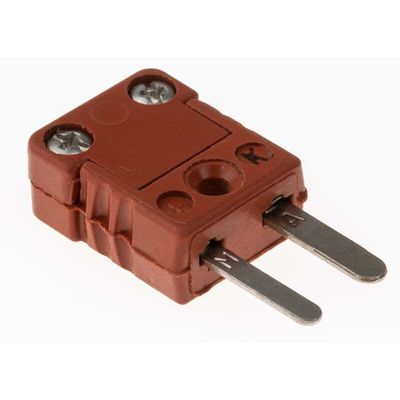

RS PRO Universal Thermocouple Connector for use with Type K Thermocouple, Miniature

This universal, high-temperature thermocouple connector plug is part of the RS PRO miniature range. It can be used with Type K thermocouples and works when exposed to temperatures down to -35°C and up to +425°C.

You'll find this in-line plug with flat pins is protected by a thermoset resin body that offers high tensile strength. It also has polarised contacts to warn you of an incorrect connection and wires that are safely sandwiched between plates of thermocouple compatible material. The connector is simple to use and offers a fast, reliable way of connecting and disconnecting temperature sensors. RS PRO's miniature Type K plug also features a clamping screw that can accommodate very fine wires through to stranded cables.

These connecting components are used in conjunction with temperature sensors and operate in high heat applications. Thermocouple connectors are also available in standard sizes with round contacts.

Features and Benefits

• Miniature thermocouple connector plug for use with Type K thermocouple
• Universal, in-line plug
• Maximum operating temperature of +425°C
• Minimum operating temperature of -35°C
• Polarised contacts to prevent incorrect connection
• Thermoset resin body
• Colour coded brown according to universal standards
• RoHS (Restriction of Hazardous Substances) compliant
