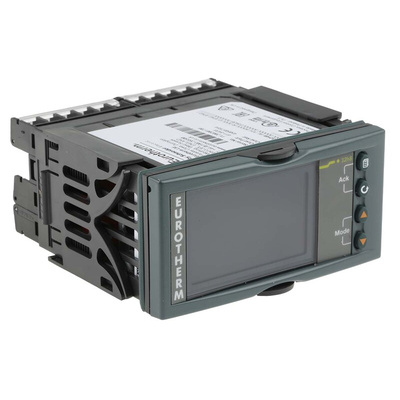

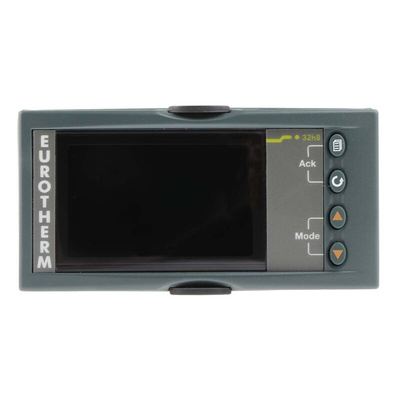

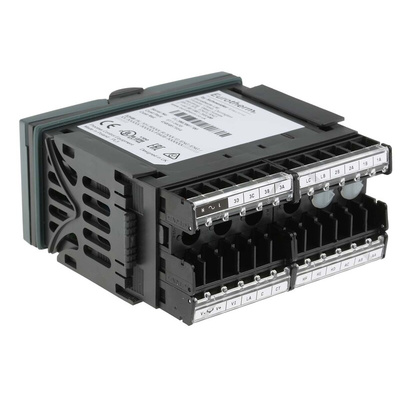

32h8i/AL/VH/RXXX/R, Eurotherm 32h8i PID Temperature Controller, 2 Output Changeover Relay, Relay, Регулятор температуры

6118438
Номер производителя: 32h8i/AL/VH/RXXX/RПроизводитель: Eurotherm
Цена за шт.
96600.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

32h8i Indicators and alarm unit

Custom text message display when an event, alarm or process condition occurs\t\t\t
Process alarms - four internal alarm setpoints are provided\t\t\t\t
2 off digital inputs as standard for alarm acknowledge etc
2 alarm relay outputs
Alarm type: High, Low, Deviation, Sensor break, Rate of change (rising or falling)\t\t\t
10Vdc transducer PSU as standard\t\t\t\t
Strain gauge input option - melt pressure and weigh scale inputs can be energised from an internal 10Vdc transducer supply with an Auto Calibration function\t\t\t
Configurable universal input - B, J, K, L, N, R, S, T, C, PT100, 0-80mV, 0-20mA, 4-20mA\t
Supply voltage: 85 to 264Vac
Power consumption: 8W
Display character height: 15.9mm\t\t
Dimensions: H48 x W96 x D90mm
Panel sealing: IP65, NEMA 4X\t\t\t\t

Eurotherm 32h8i Series

Accurate indication of temperature and process measurements. Process interlocks, including overtemperature furnace limits, are implemented using relay output channels.

Техническая спецификация
pdf3000 Brochure
pdfseries 3200i product specification Data Sheet
pdfUser Guide 3200i Process Indicator
Диапазон:
Eurotherm 328h
Доступный коммуникационный модуль:
Да
Количество выходов:
2
Серия:
32h8i
Тип выхода:
Реле переключения, Реле
Тип дисплея:
Multi Line
Цвет дисплея:
Зеленый
