RS PRO AA Battery Holder, Coil Spring Contact, Держатель

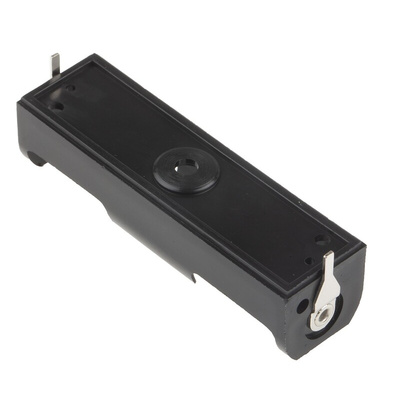

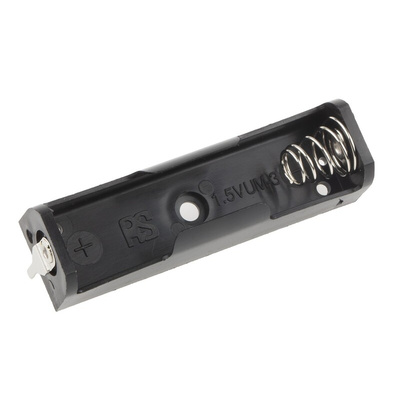

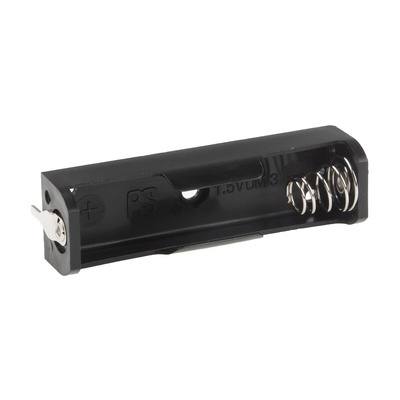

RS PRO AA Battery Holder, Coil Spring Contact

This RS PRO AA battery holder has a nickel-plated steel coiled spring that presses against the negative cell terminal to make electrical contact. It can hold a single AA cell.

The primary function of a battery holder is to hold cells safely and securely fixed in place while powering a device. It's designed to be either inserted into or attached to battery-operated equipment. This holder comes with two 1.7 mm wide nickel-plated solder lugs, which can be attached to printed circuit boards or other terminals. It also has a pre-drilled 3.4 mm hole on the base, so it can be bolted to a circuit board.

The black polypropylene (PP) holder measures 52.7 mm by 16.4 mm by 14.8 mm. It has a high resistance to chemicals and can be used in industrial environments at temperatures of up to +82°C.

Features and Benefits

• Holds 1 x AA battery
• 2 x 1.7 mm lugs for mounting to a printed circuit board
• One mounting hole
• Dimensions of 57.2 mm x 16.4 mm x 14.8 mm
• Operating temperature of up to +82°C
• Coil spring terminal contact
• Black polypropylene (PP) body offers high resistance to chemicals

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS Pro Datasheet
