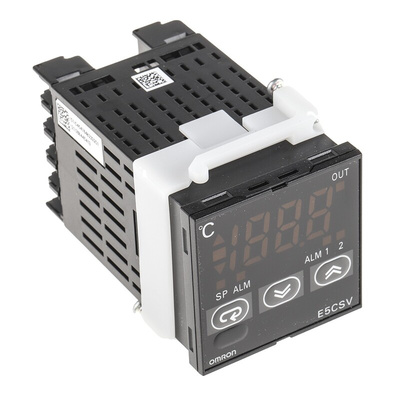

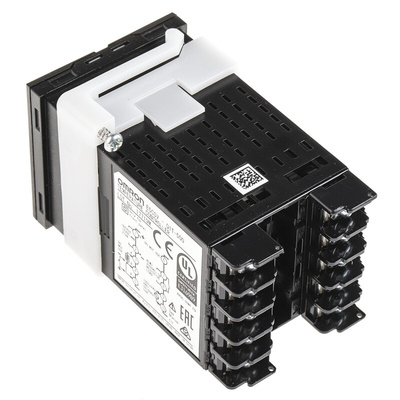

E5CSV-Q1T-500 AC100-240, Omron E5CSV Flush Mount PID Temperature Controller, 48 x 48mm 1 Input, 1 Output SSR, 100 → 240 V ac Supply, Регулятор температуры

OMRON PID Temperature Controller, LCD Screen, Multi-Input Type - E5CSV Series - E5CSV-Q1T-500 AC100-240

Keep tabs on your thermostat with the help of this PID temperature controller from OMRON. Typically used with industrial fridges, ovens and HVAC applications, it automatically adjusts any fluctuations to maintain a programmed setpoint. The unit uses multiple inputs, including a thermocouple and platinum resistance thermometer, transforming them into a single SSR output. At just 48 (H) x 48 (W) x 78mm (D), the unit is compact enough to fit easily into your heating and cooling system. Setup is a breeze, thanks to a DIP switch and built-in programming functions.

Features & Benefits

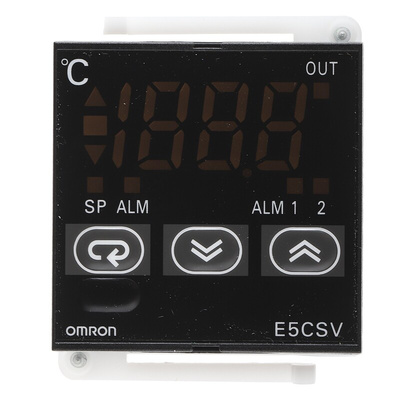

• LCD screen is easy to read with a character height of 13.5mm
• 11 alarm options give clear alerts for rapid troubleshooting
• IP66-rated front panel is protected against water sprays and dust

Applications

• Pharmaceutical development
• Food preparation and packaging
• Sheet metal conditioning

What type of power supply does this controller need?

The unit is compatible with most power systems as it accepts an operating supply voltage between 100 and 240V AC.

What is the unit's input range?

This versatile controller takes a wide range of inputs from -99°C to +1700°C (thermocouple) and -99°C to +850°C (platinum resistance thermometer).
