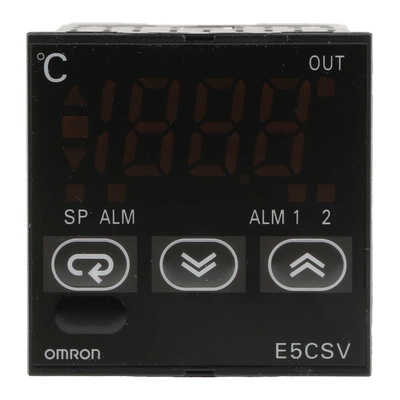

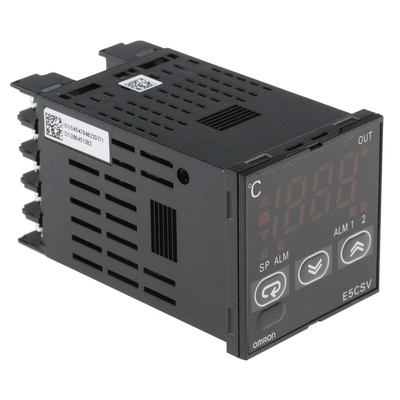

E5CSV-Q1TD-500, Omron E5CSV PID Temperature Controller, 48 x 48mm, 2 Output Relay, 24 V ac/dc Supply Voltage, Регулятор температуры

Omron Temperature Controller

The Omron E5CSV series temperature controller offers multi-input thermocouple/PT100 and control output of voltage (for driving SSR). This controller has a width of 48mm and a height of 48mm (1/16 DIN) device. This controller has an alarm function and a large digital display. It is a front panel controller that is suitable for use in harsh conditions where moisture, dust and heat are expected. It is easy to set up using a dip switch and has various built-in functions. The controller has an operating supply of 24VAC/DC. It has a digital setting using front panel keys and deviation indicator makes monitoring effective.

Features and Benefits

11 alarm options to suit the applications
Advanced setting possible through easy to follow menu
Choice of relay or voltage pulse output
Finger protection cover
Full PID auto tune of adaptive self-tune options
One alarm point
3.5-digit 7-segment LCD display
Power consumption is 5VA
Simple settings using DIP-switches
Thermocouple (K, J, L, T, U, N, R) and Pt100 (Pt100, JPt100) in one unit

Certifications

CSA C22.2 No. 1010-1
EN61010-1
EN61326
Front panel IP66 rated
IEC61010-1
Rear case IP20 rated
Terminals IP00 rated
UL 61010-1
VDE0106, Part 100 (Finger protection) when the terminal cover is mounted
