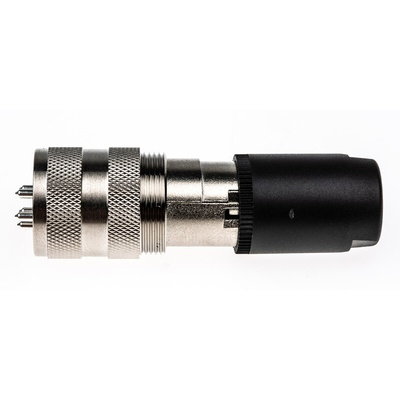

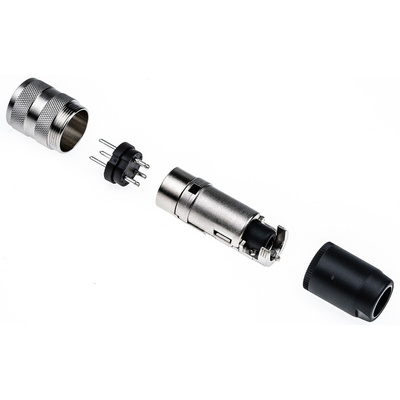

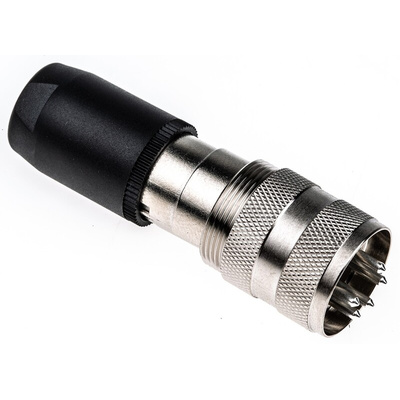

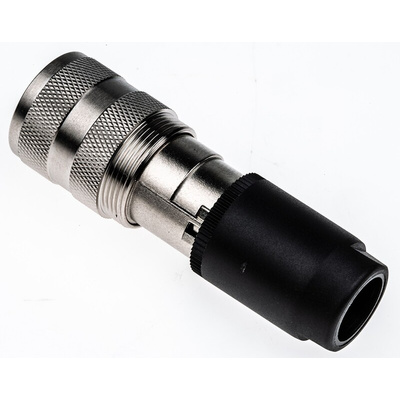

Amphenol Circular Connector
The Amphenol C091A series 5-contact male circular connector has a plug-type connection. This cable mount connector has a voltage rating of 300VAC and a current rating of up to 5A per contact. The connector includes internal metal strain relief with half-shell construction and snap-in latching. This can be made of thermoplastic material with a silver plating copper alloy contacts. It is a compact and robust design, with a screw-on matting connection that meets the high requirements of industrial technology applications.
Features and Benefits
Cable diameter ranging between 3mm and 6mm
Durability of 500 mating cycles
EMI shielding
Operating temperature ranging between -40°C and 85°C
Shell size is 17mm
Straight body orientation
Applications
Automation
Instrumentation
Power distribution
Robotics
Certifications
IP40 rated
UL approved
CO91 Series Connectors Catalogue ExtractMetal Threaded Connectors C091A SeriesT3360 001 DatasheetC091A PCB-LayoutC091 Current-Derating-CurvesC091 Safety ClassificationIP Codes| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
