T3507 100 RS, Amphenol Industrial Amphenol, signalmate C091 8 Pole M16 Din Socket, 5.0A, 100 V IP40, Screw On, Panel Mount, Разъем

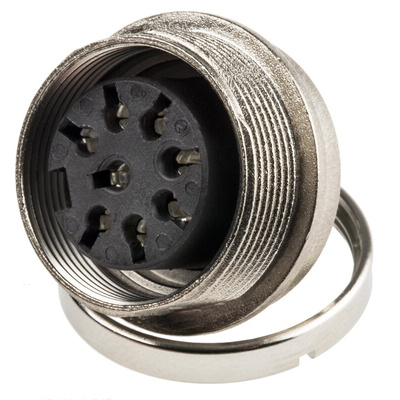

Amphenol Circular Connector

The Amphenol C091A series 8-contact female circular connector has a socket type connection. This panel mount connector has a voltage rating of 100VAC and a current rating of up to 5A per contact. This can be made of thermoplastic material with a silver plating copper alloy contacts. It is a compact and robust design, with a metal screw thread and a locking ring that meets the high requirements of industrial technology applications.
Note:
Depth of 12-way socket = 10mm.

Features and Benefits

Cable diameter ranges between 3mm and 6mm
Durability of 500 mating cycles
EMI shielding
Operating temperature ranges between -40°C and 100°C
Shell size is 20mm
Straight body orientation

Applications

Automation
Instrumentation
Power distribution
Robotics

Certifications

IP40 rated
UL approved

Metal Threaded Connectors C091A Series

T3507 100 Datasheet
